Universal Gauge Sets

Universal Gauge (extension compatible version) standard features: Range 30-250mm internal / 0-215mm external 15mm anvil travel Constant measuring pressure Digital or mechanical readout 150mm and 500mm extensions available. Can be screwed together in multiples (up to maximum 3m recommended) Measuring table and supports available for conversion to bench gauge for the measurement of small components

Universal Gauge (extension compatible version) standard features:

Range 30-250mm internal / 0-215mm external 15mm anvil travel
Constant measuring pressure
Digital or mechanical readout
150mm and 500mm extensions available. Can be screwed together in multiples (up to maximum 3m recommended)
Measuring table and supports available for conversion to bench gauge for the measurement of small components
Covers approx 90% of all applications

Set Content – Standard Version

Code No.	Description	Range – Internal (mm)	Range – Internal (inch)	Range – External (mm)	Range – External (inch)

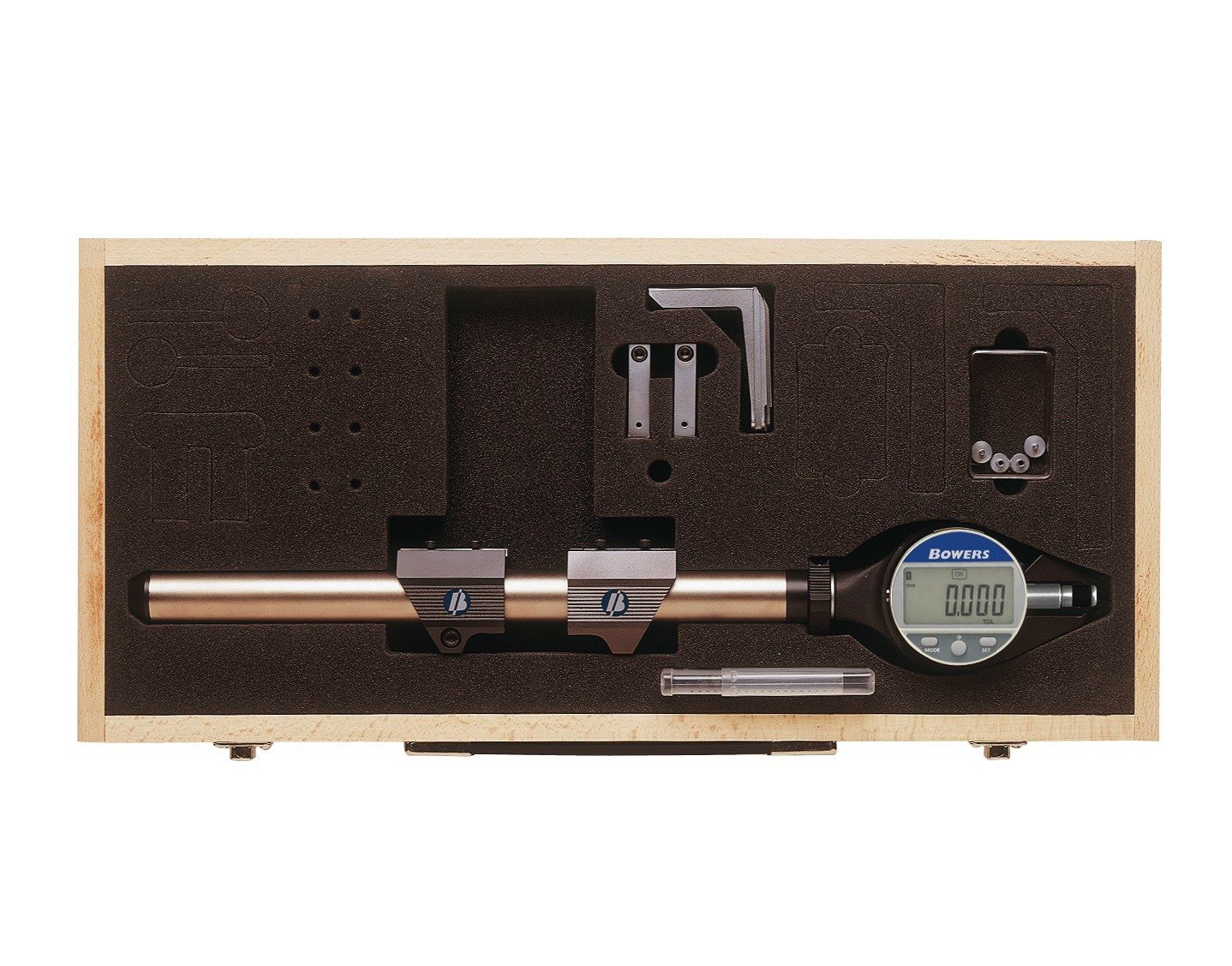

TGUDEMO2	Set with box
TGU1000	Universal Gauge – supplied boxed. Compatible with extensions	30-250	1.2-10.030	0-215	0.8-50

Universal Gauge(slide guideway version) standard features:

Range 30-335mm internal / 0-300mm external 15mm anvil travel
Slide guideway for rapid measuring contact alignment
Constant measuring pressure
Digital or mechanical readout
Measuring table and supports available for conversion to bench gauge for the measurement of small components
Covers approx 90% of all applications

Code No.	Description	Range – Internal (mm)	Range – Internal (inch)	Range – External (mm)	Range – External (inch)
TGU1000G	Universal Gauge – supplied boxed. Not Compatible with Extensions	30-335	1.2-13.20	0-300	0-11.80
TGUGSET01	Slide Guideway version-Set
TGUGSET01-BT	Slide Guideway version-Set (with Bluetooth)
TGU1000G-BT	Universal Gauge – supplied boxed (with Bluetooth). Not Compatible with Extensions	30-335	1.2-13.20	0-300	0-11.80
