Measuring principle
This instrument has a separate flexible probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of nonconductive coatings on non-magnetic substrates.
Applications
The Instrument is designed for measuring the thickness of paint or galvanized layer on iron and stainless steel surface and measuring the thickness of paint or plastic film on aluminum and copper surfaces.
Features
- Automatic substrate recognition with flexible probe
- On display calibration guide
- Trend graph with alarm limits
- Bluetooth for data acquisition
- Statistics measurement and in-built data storage
- Clear backlit display
Technical Specifications

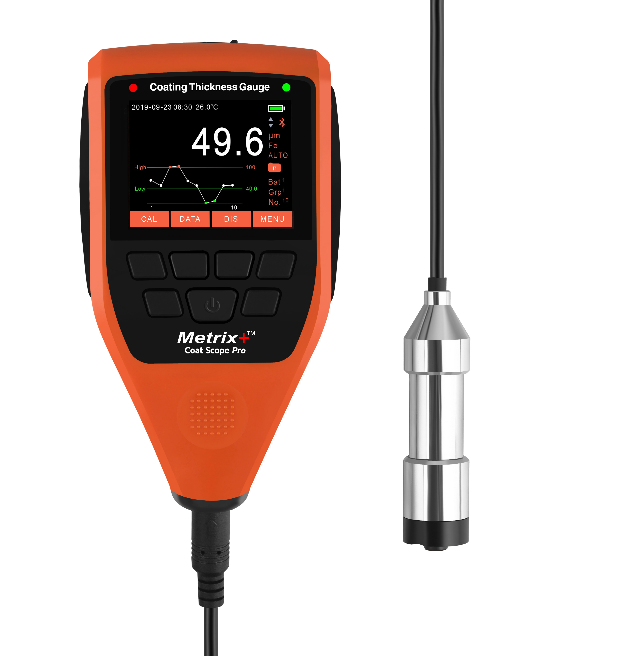

| Model | Metrix+ Coat Scope Pro |
| Measuring principle | Magnetic induction(F) & Eddy Current (NF) |
| Measuring range | 0 – 2000um |
| Accuracy | ±(2% + 1um) |
| Resolution |
0.1um (0~100um) 1um (> 100um) |
| Calibration | Zero point and multi-point calibration |
| Storage | 10*13*10 measurement data |
| Statistics | Number of Readings, Max, Min, Mean, Sample Standard Deviation, Coefficient of Variation, Number below Limit, Number above Limit |
| Units | um, mm, mils, inch |
| Minimum curvature radius |
5mm(convex) 25mm(concave) |
| Minimum measuring area | Diameter 15mm |
| Minimum thickness of substrate |
0.20mm(F) 0.03mm(NF) |
| Power supply | 2 x 1.5V AA battery |
| Operation environment |
Temperature: -10 to 50℃ Humidity: 20 ~ 90% RH |
| Storage environment |
Temperature: -20 to 60℃ Humidity: 20 ~ 90% RH |
| Size | 146mm × 76mm × 32mm |
| Material and weight | ABS |
| Weight | 137g (not including batteries) |
| Standard Accessories | Coating Thickness Gauge with probe, ‘0’ calibration block, standard foils, batteries, factory calibration certificate, technical manual, hard carry case. |
