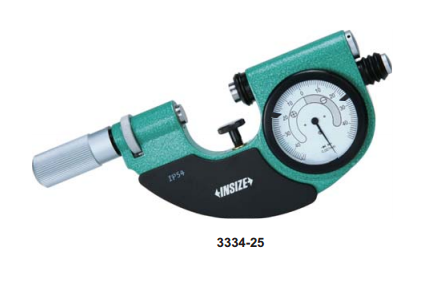

DIAL SNAP GAGE CODE – 3334

Go/No-Go judgement for mass production Dial indicator: range ±0.04mm, graduation 0.001mm, accuracy 0.001mm IP54 dust/waterproof Measuring force: 5-10N Carbide measuring faces Supplied with setting standards (except 0-25mm) Code Range L D 3334-25 0-25mm 28.5 25 3334-50 25-50mm 53.5 35 3334-75 50-75mm 78.5 47.5 3334-100 75-100mm 103.5 60 Check the PDF
