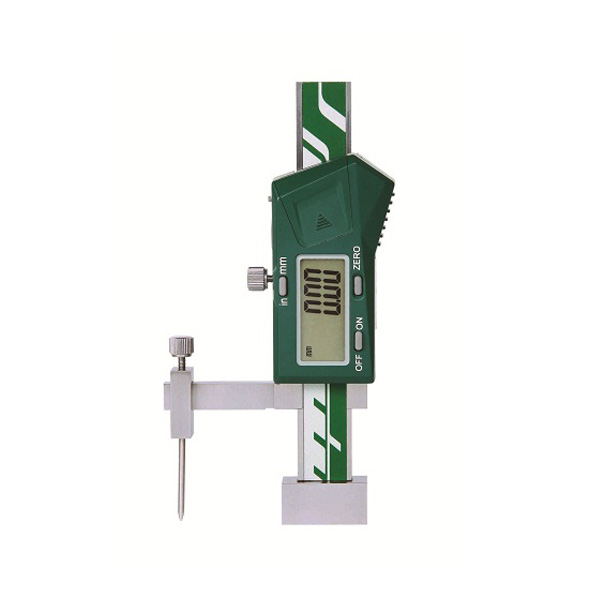

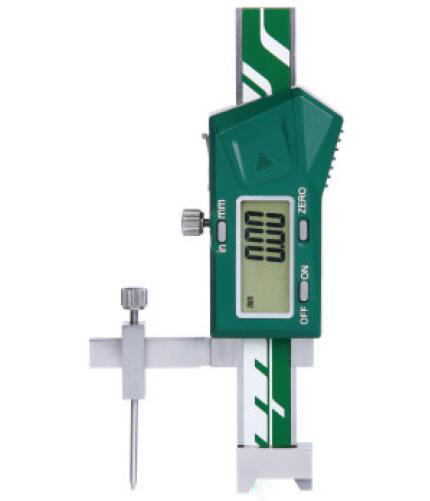

INSIZE Mini Digital Height Gage 1146

INSIZE MINI DIGITAL HEIGHT GAGE (CODE – 1146)

Non waterproof Measure height difference of two surfaces (1146-20B, 1146-20BWL suitable for surfaces with barrier, such as rivet) Resolution: 0.01 mm/0.0005" Buttons: on/off, zero, mm/inch Automatic power off, move the digital unit to turn on power Battery CR2032 Made of stainless steel

Download Catalog

With Data Interface

Code	Range	Accuracy
1146-20A	0~ ±20mm / 0~ ±0.8″	±0.02mm
1146-20B	0~ ±20mm / 0~ ±0.8″	±0.02mm

Built-in Wireless (Receiver Code 7315-2/3/6/7/8/9 is required)

Code	Range	Accuracy
1146-20AWL	0~ ±20mm / 0~ ±0.8″	±0.02mm
1146-20BWL	0~ ±20mm / 0~ ±0.8″	±0.02mm

Non waterproof
Measure height difference of two surfaces (1146-20B, 1146-20BWL suitable for surfaces with barrier, such as rivet)
Resolution: 0.01 mm/0.0005″
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
