MARCATOR Long-Range Indicators

MARCATOR – LONG-RANGE INDICATORS

MARCATOR 28IQN DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft

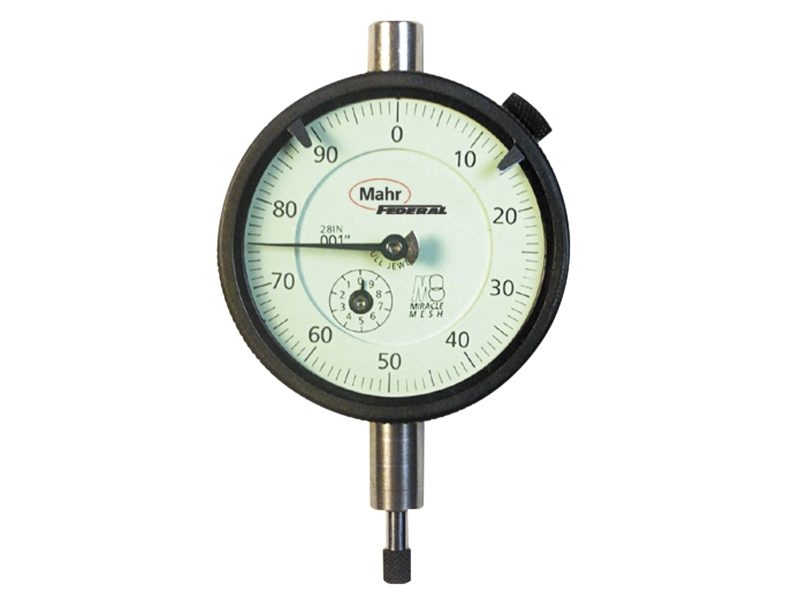

MARCATOR 28IQN DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pullback spring requires less maintenance
Normally furnished: continuous clockwise dial; centered vertical lug back; regular contact point, .18” radiused, .250” long
Long Range Models: include (1) revolution counter (except C9I without revolution counter). Extra Long Range Models: include (2) revolution counters
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Standard	Scale diameter (inches)	Dial color
2011064	42IQ	.500″	.0001”	0-10	.010″	± .0001″ for first 2 1/2 rev. only	ANSI	3.625″	green
2011270	D8IS	1.000″	.001″	0-100	.100″	± .001″	ANSI	2.75″	green
2011272	D8IT	2.000″	.001″	0-100	.100″	± .001″ for first 1″ of travel	ANSI	2.75″	green
2011318	E8IU	3.000″	.001″	0-100	.100″	± .001″ for first 1″ of travel	ANSI	3.625″	green
2014698	28ISN	1.000″	.001″	0-100	.100″	± .001″	ANSI	2.25″	green
2014699	28IQN	.500″	.001″	0-100	.100″	± .001″	ANSI	2.25″	green
2014816	29I	1.000″	.01″	0-1000	1.000″	± .010″	ANSI	2.25″	green

MARCATOR SQ6IS DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pullback spring requires less maintenance
Normally furnished: continuous clockwise dial; centered vertical lug back; regular contact point, .18” radiused, .250” long
Long Range Models: include (1) revolution counter (except C9I without revolution counter). Extra Long Range Models: include (2) revolution counters
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Standard	Scale diameter	Dial color
2011883	Q8IT	50 mm	0.025 mm	0-25	2.5 mm	ANSI	70 mm	yellow
2012363	R8IU	75 mm	0.025 mm	0-25	2.5 mm	ANSI	92 mm	yellow

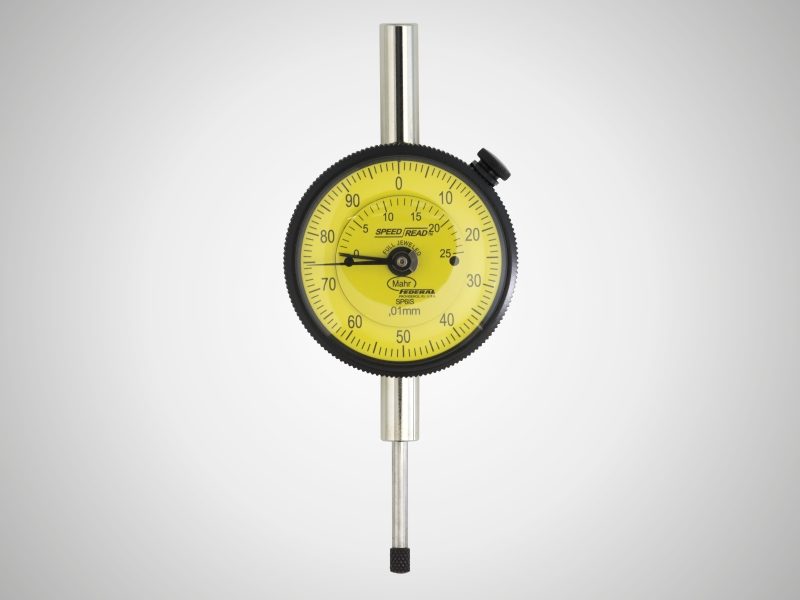

2012381	SP6IS	25 mm	0.01 mm	0-100	1 mm	ANSI	57 mm	yellow
2012384	SQ6IS	25 mm	0.01 mm	0-100	1 mm	ANSI	70 mm	yellow
