MARTEST – TEST INDICATOR, STANDARD MODEL, MM MARTEST – TEST INDICATOR, STANDARD MODEL, 0.01 MM MARTEST 800 SR TEST INDICATOR High-contrast dial face, sealed with O-ring Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents Matt chrome plated protective casing with three integrated dovetail guide rails Shockproof

MARTEST – TEST INDICATOR, STANDARD MODEL, MM

MARTEST – TEST INDICATOR, STANDARD MODEL, 0.01 MM

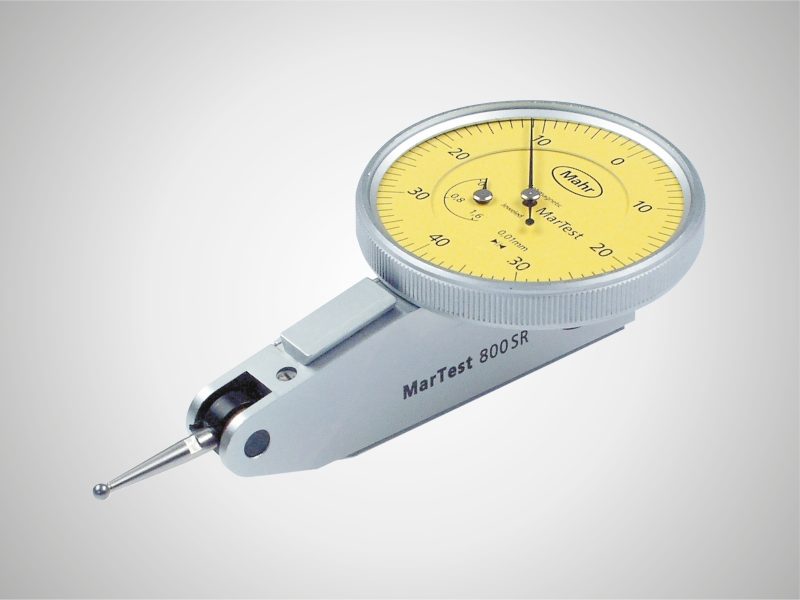

MARTEST 800 SR TEST INDICATOR

High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
Matt chrome plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensures infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Stylus with carbide ball

Standard model indicator

Technical Data

Order no.	Product type	Measuring range mm	Graduation value mm	Type of dial face	Range per rev. in mm	Span of error fe (µm)	Total span of error fges (µm)	Hysteresis fu (µm)	Partial measuring range ft (µm)	Repeatability fw (µm)	Standard	Measuring force	Scale diameter	Dial color
4301200	800 SA	± 0.25	0.01 mm	25-0-25	0.5 mm	5 µm	8 µm	3 µm	5 µm	3 µm	Factory standard	0.1 N	27.5 mm	yellow
4301250	800 SGA	± 0.25	0.01 mm	25-0-25	0.5 mm	5 µm	8 µm	3 µm	5 µm	3 µm	Factory standard	0.1 N	38 mm	yellow
4305200	800 S	± 0.4	0.01 mm	40-0-40	0.8 mm	10 µm	13 µm	3 µm	5 µm	3 µm	DIN 2270	0.15 N	27.5 mm	yellow
4307200	800 SG	± 0.4	0.01 mm	40-0-40	0.8 mm	10 µm	13 µm	3 µm	5 µm	3 µm	DIN 2270	0.15 N	38 mm	yellow
4307250	800 SR	± 0.8	0.01 mm	40-0-40	0.8 mm	10 µm	14 µm	4 µm	5 µm	3 µm	Factory standard	0.15 N	38 mm	yellow

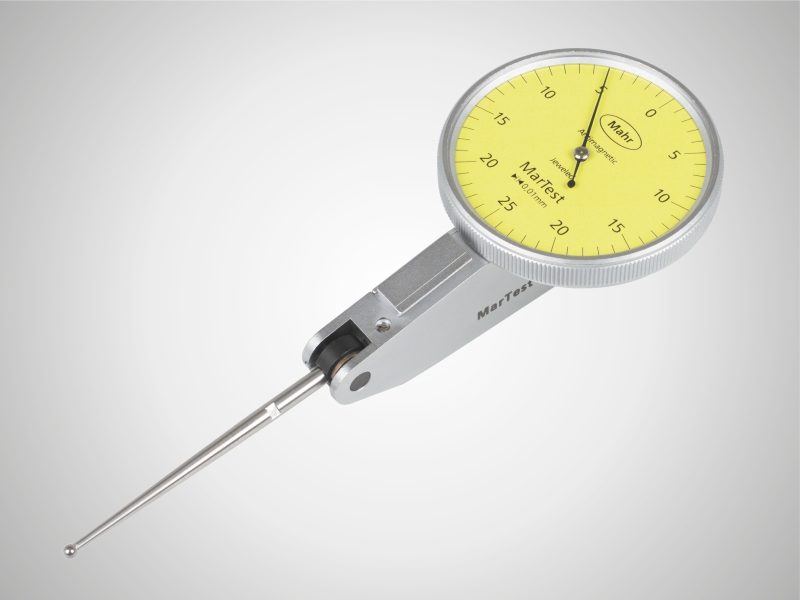

MARTEST 800 SGL TEST INDICATOR

High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
Matt chrome plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensures infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Stylus with carbide ball

Standard model indicator

Technical Data

Order no.	Product type	Measuring range mm	Graduation value mm	Type of dial face	Range per rev. in mm	Span of error fe (µm)	Total span of error fges (µm)	Hysteresis fu (µm)	Partial measuring range ft (µm)	Repeatability fw (µm)	Standard	Measuring force	Scale diameter	Dial color
4301300	800 SGB	± 0.5	0.01 mm	50-0-50	1 mm	10 µm	13 µm	4 µm	5 µm	3 µm	Factory standard	0.07 N	38 mm	yellow
4306200	800 SL	± 0.25	0.01 mm	25-0-25	0.5 mm	10 µm	13 µm	5 µm	5 µm	3 µm	Factory standard	0.07 N	27.5 mm	yellow
4306250	800 SGL	± 0.25	0.01 mm	25-0-25	0.5 mm	10 µm	13 µm	5 µm	5 µm	3 µm	Factory standard	0.07 N	38 mm	yellow

MARTEST – TEST INDICATOR, FOR HIGH-PRECISION MEASUREMENTS

MARTEST 800 SGE TEST INDICATOR

High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
Matt chrome plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensures infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Stylus with carbide ball

Technical data

Order no.	Product type	Measuring range mm	Graduation value mm	Type of dial face	Range per rev. in mm	Span of error fe (µm)	Total span of error fges (µm)	Hysteresis fu (µm)	Partial measuring range ft (µm)	Repeatability fw (µm)	Standard	Measuring force	Scale diameter	Dial color
4308220	800 SGE	± 0.07	0.001 mm	70-0-70	0.14 mm	3 µm	4 µm	2 µm	2 µm	1.5 µm	Factory standard	0.2 N	38 mm	yellow

MARTEST 800 SRM TEST INDICATOR

High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
Matt chrome plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensures infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Stylus with carbide ball

Technical data

Order no.	Product type	Measuring range mm	Graduation value mm	Type of dial face	Range per rev. in mm	Span of error fe (µm)	Total span of error fges (µm)	Hysteresis fu (µm)	Partial measuring range ft (µm)	Repeatability fw (µm)	Standard	Measuring force	Scale diameter	Dial color
4308150	800 SM	± 0.1	0.002 mm	100-0-100	0.2 mm	3 µm	4 µm	2 µm	2 µm	1.5 µm	DIN 2270	0.15 N	27.5 mm	yellow
4308200	800 SGM	± 0.1	0.002 mm	100-0-100	0.2 mm	3 µm	4 µm	2 µm	2 µm	1.5 µm	DIN 2270	0.15 N	38 mm	yellow
4308250	800 SRM	± 0.2	0.002 mm	100-0-100	0.2 mm	3 µm	5 µm	3 µm	2 µm	1.5 µm	Factory standard	0.15 N	38 mm	yellow

MARTEST – TEST INDICATOR, STANDARD MODEL, INCH

MARTEST – TEST INDICATOR, STANDARD MODEL

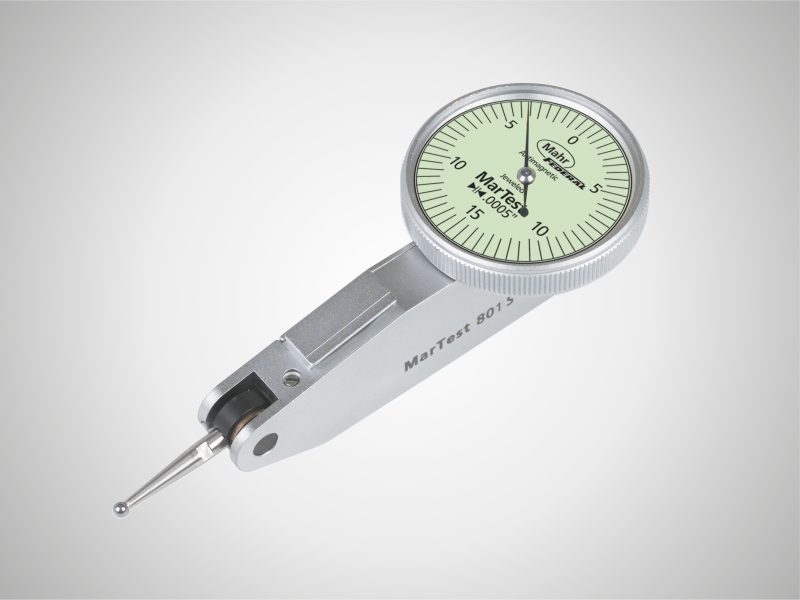

MARTEST 801 S TEST INDICATOR

High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
Matt chrome plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensures infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Stylus with carbide ball

Standard model indicator

Technical data

Order no.	Product type	Measuring range mm	Measuring range inch	Graduation value inch	Graduation value mm	Type of dial face	Range per rev. in mm	Pointer rotation (inches)	Deviation range fe (inches)	Total deviation range fges (inches)	Measuring value hysteresis fu (inches)	Partial measuring range ft (inches)	Repeatability fw (inches)	Standard	Measuring force	Scale diameter (inches)	Dial color	Set included
4305950	801 S		± .015″	.0005″		15-0-15		.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.1″	green
4305960	801 S1		± .015″	.0005″		15-0-15		.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green
4307950	801 SG		± .015″	.0005″		15-0-15		.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.1″	green
4307960	801 SR		± .030″	.0005″		15-0-15		.03″	.0004″	.0005″	.0002″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green
4307970	801 SGI	± 0.3	± .015″	.0005″	0.01 mm	15-0-15	0.6 mm	.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green
2015311	801 SGI	± 0.3	± .015″	.0005″	0.01 mm	15-0-15	0.6 mm	.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green	holding bar HB-2157 / clamp CP-2199
2015316	801 S		± .015″	.0005″		15-0-15		.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.1″	green	holding bar HB-2157 / clamp CP-2199
2015317	801 S1		± .015″	.001″		15-0-15		.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green	holding bar HB-2157 / clamp CP-2199
2015318	801 SG		± .015″	.0005″		15-0-15		.03″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green	holding bar HB-2157 / clamp CP-2199
2015350	801 SR		± .030″	.0005″		15-0-15		.03″	.0004″	.0005″	.00016″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green	holding bar HB-2157 / clamp CP-2199

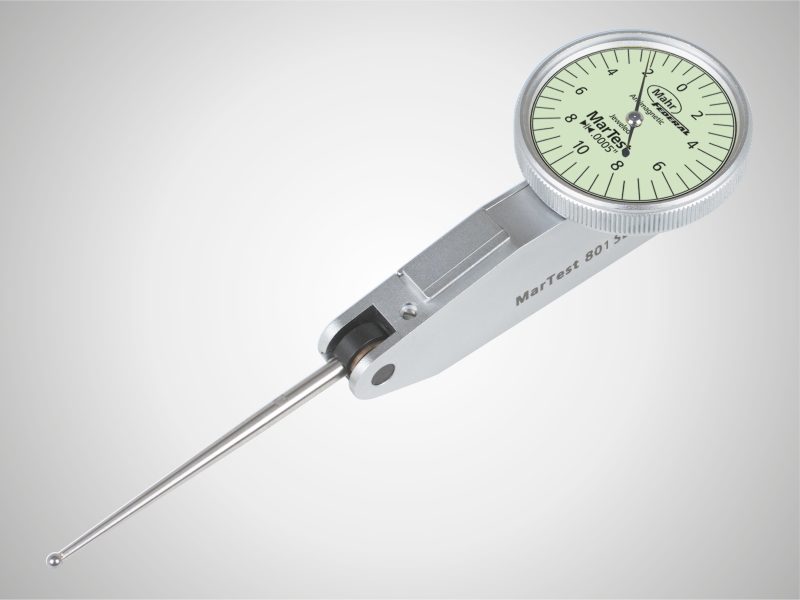

MARTEST 801 SL TEST INDICATOR

High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
Matt chrome plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensures infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Stylus with carbide ball

Standard model indicator

Technical data

Order no.	Product type	Measuring range inch	Graduation value inch	Type of dial face	Pointer rotation (inches)	Deviation range fe (inches)	Total deviation range fges (inches)	Measuring value hysteresis fu (inches)	Partial measuring range ft (inches)	Repeatability fw (inches)	Standard	Measuring force	Scale diameter (inches)	Dial color	Set included
4306950	801 SL	± .010″	.0005″	10-0-10	.02″	.0004″	.0005″	.0002″	.0002″	.0001″	Factory standard	0.07 N	1.1″	green
4306960	801 SGL	± .010″	.0005″	10-0-10	.02″	.0004″	.0005″	.0002″	.0002″	.0001″	Factory standard	0.07 N	1.5″	green
2015319	801 SL	± .010″	.0005″	10-0-10	.02″	.0004″	.0005″	.0002″	.0002″	.0001″	Factory standard	0.07 N	1.1″	green	holding bar HB-2157 / clamp CP-2199
2015320	801 SGL	± .010″	.0005″	10-0-10	.02″	.0004″	.0005″	.0002″	.0002″	.0001″	Factory standard	0.07 N	1.5″	green	holding bar HB-2157 / clamp CP-2199

MARTEST 801 SM TEST INDICATORL

High-contrast dial face, sealed with O-ring
Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
Matt chrome plated protective casing with three integrated dovetail guide rails
Shockproof measuring mechanism
Anti-magnetic model
Automatic adjustment to the contacting direction ensures infallible readings
Ball bearing mounted double lever
Friction clutch overload protection
Stylus with carbide ball

Technical data

Order no.	Product type	Measuring range inch	Graduation value inch	Type of dial face	Pointer rotation (inches)	Deviation range fe (inches)	Total deviation range fges (inches)	Measuring value hysteresis fu (inches)	Partial measuring range ft (inches)	Repeatability fw (inches)	Standard	Measuring force	Scale diameter (inches)	Dial color	Set included
4308960	801 SM	± .004″	.0001”	4-0-4	.008″	.00012″	.00016″	.00008″	.00008″	.0001″	Factory standard	0.15 N	1.1″	green
4308970	801 SGM	± .004″	.0001”	4-0-4	.008″	.00012″	.00016″	.00008″	.00008″	.0001″	Factory standard	0.15 N	1.5″	green
4308980	801 SRM	± .008″	.0001”	4-0-4	.008″	.00012″	.0002″	.00012″	.00008″	.0001″	Factory standard	0.15 N	1.5″	green
4308985	801 SGE	± .004″	.00005″	4-0-4	.008″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green
2015321	801 SM	± .004″	.0001”	4-0-4	.008″	.00012″	.00016″	.00008″	.00008″	.0001″	Factory standard	0.15 N	1.1″	green	holding bar HB-2157 / clamp CP-2199
2015322	801 SGM	± .004″	.0001”	4-0-4	.008″	.00012″	.00016″	.00008″	.00008″	.0001″	Factory standard	0.15 N	1.5″	green	holding bar HB-2157 / clamp CP-2199
2015323	801 SGE	± .004″	.00005″	4-0-4	.008″	.0004″	.0005″	.00012″	.0002″	.0001″	Factory standard	0.15 N	1.5″	green	holding bar HB-2157 / clamp CP-2199
2015351	801 SRM	± .008″	.0001”	4-0-4	.008″	.00012″	.0002″	.00012″	.00008″	.0001″	Factory standard	0.15 N	1.5″	green	holding bar HB-2157 / clamp CP-2199
