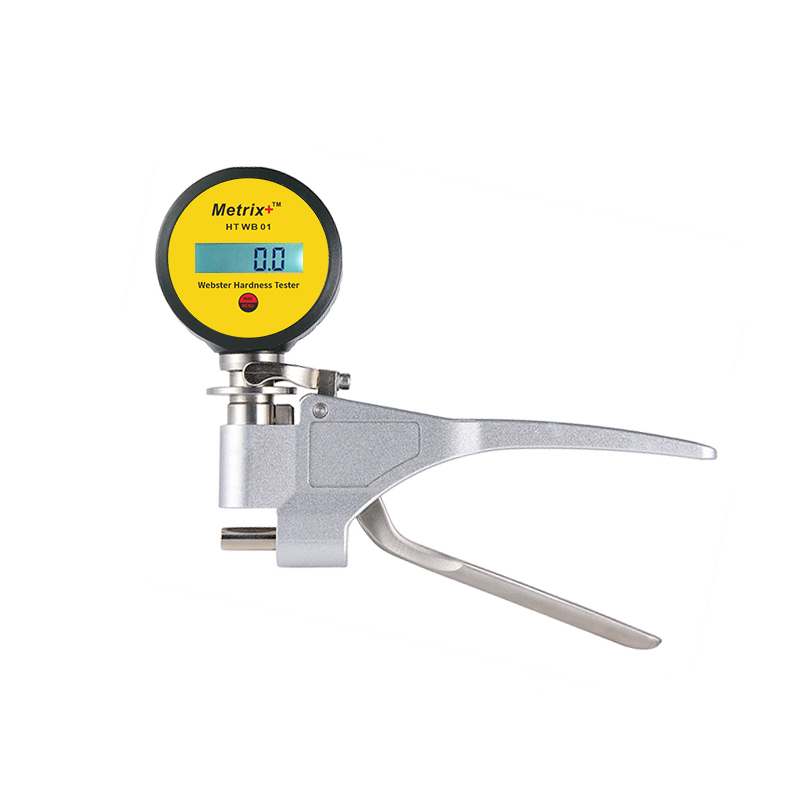

| Model | Metrix+ HT WB 01 | Metrix+ HT WB 01D |
| Std Hardness scale | HW | |
| Range | 0 ~ 20HW (low sensitivity <4HW and >17HW)
25 ~ 110HRE 58 ~ 131HV |
|
| Accuracy | +2%
(+5% <4HW and >17HW) |
|
| Resolution | 0.5HW | |
| Statistics | – | Avg and Max |
| Other Hardness Scales | – | HBa/ HB/ HRF/ HV/ HRH/ HRB/ HRE |
| Dimensions | 220 x 160 x 30mm | |
| Weight | 625g | |
| Power Source | 2 x 1.5V AAA batteries | |
| Std accessories | Main unit, std webster block, presser/ needle, wrench, screwdriver, anvil handle, manual, case | |
| Optional accessories | Spare presser/ needle, std webster block | |
This can be used to quickly measure the hardness of aluminium alloys, aluminium pipes, plates, workpieces and other softer metal aluminium products.
A needle of specific size is hard pressed on to the sample, and the depth of penetration is measured to estimate the hardness of the sample. Webster Hardness is mainly used to measure hardness of Aluminum and its alloys.
