MICROMAR 40 AB - MICROMETER FOR MEASURING GROOVES, SPLINE SHAFTS, RECESSES, ETC.

MICROMAR 40 AB – MICROMETER FOR MEASURING GROOVES, SPLINE SHAFTS, RECESSES, ETC.

MICROMAR 40 AB MICROMETER Reduced measuring surfaces Ø 3 mm Operating and display units with satin chrome finish Hard lacquered steel frame Spindle and anvil made of hardened steel, carbide tipped Heat insulators Rapid drive with integrated ratchet Locking device instruction manual setting standard (measuring range of 25-50 mm) case Technical Data Order no. Measuring

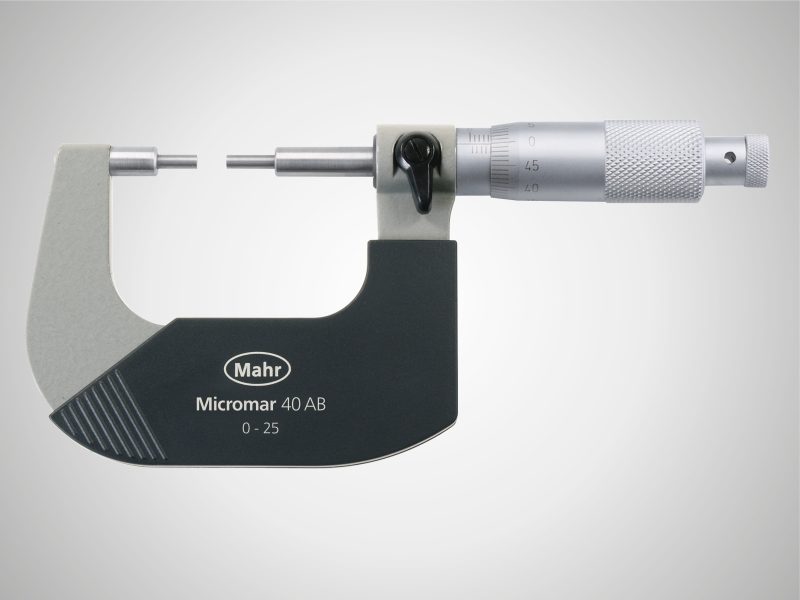

MICROMAR 40 AB MICROMETER

Reduced measuring surfaces Ø 3 mm
Operating and display units with satin chrome finish
Hard lacquered steel frame
Spindle and anvil made of hardened steel, carbide tipped
Heat insulators
Rapid drive with integrated ratchet
Locking device
instruction manual
setting standard (measuring range of 25-50 mm)
case

OLYMPUS DIGITAL CAMERA

Technical Data

Order no.	Measuring range mm	Graduation value mm	Error limit µm	Spindle thread pitch_mm	Measuring force (N)
4134100	0 – 25	0,01	4 µm	0.5 mm	5 – 10
4134101	25 – 50	0,01	4 µm	0.5 mm	5 – 10
4134102	50 – 75	0,01	5 µm	0.5 mm	5 – 10
4134103	75 – 100	0,01	5 µm	0.5 mm	5 – 10

MICROMAR 40 AB MICROMETER

Reduced measuring surfaces Ø 3 mm
Operating and display units with satin chrome finish
Hard lacquered steel frame
Spindle and anvil made of hardened steel, carbide tipped
Heat insulators
Rapid drive with integrated ratchet
Locking device
instruction manual
setting standard (from measuring range 1-2″)
case

OLYMPUS DIGITAL CAMERA

Technical Data

Order no.	Measuring range inches	Graduation value inch	Error limit inches	Micrometer pitch (inches)	Measuring force (N)
4134920	0 – 1″	.0001”	.00016″	.025″	5 – 10
4134921	1 – 2″	.0001”	.00016″	.025″	5 – 10
4134922	2 – 3″	.0001”	.0002″	.025″	5 – 10
4134923	3 – 4″	.0001”	.0002″	.025″	5 – 10
