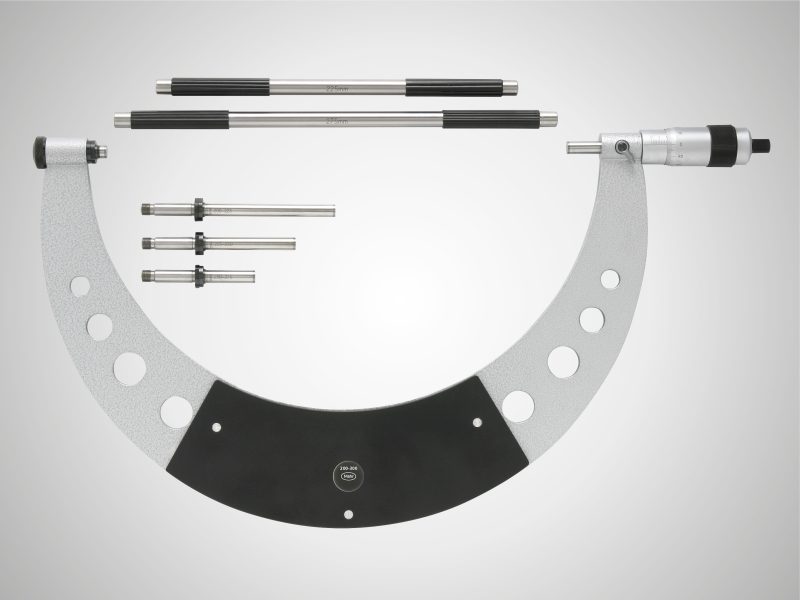

MICROMAR 40 W MICROMETER

MICROMAR 40 W MICROMETER

Operating and display units with satin chrome finish Spindle and anvil made of hardened steel, carbide tipped Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight Heat insulators Ratchet is integrated in the thimble Locking device 4 interchangeable anvils, adjustable instruction manual setting values case Technical

Operating and display units with satin chrome finish
Spindle and anvil made of hardened steel, carbide tipped
Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight
Heat insulators
Ratchet is integrated in the thimble
Locking device
4 interchangeable anvils, adjustable
instruction manual
setting values
case

Micromar Micrometer

Technical Data

Order no.	Measuring range mm	Graduation value mm	Error limit µm	Parallel error in µm	Flatness in µm	Spindle diameter	Spindle thread pitch_mm
4137500	0 – 100	0,01	5 µm	3 µm	0.6 µm	8 mm	1 mm
4137501	100 – 200	0,01	7 µm	4 µm	0.6 µm	8 mm	1 mm
4137502	200 – 300	0,01	9 µm	5 µm	0.6 µm	8 mm	1 mm
4137503	300 – 400	0,01	11 µm	6 µm	0.6 µm	8 mm	1 mm
4137504	400 – 500	0,01	13 µm	7 µm	0.6 µm	8 mm	1 mm
4137505	500 – 600	0,01	21 µm	8 µm	0.6 µm	8 mm	1 mm
4137506	600 – 700	0,01	23 µm	8 µm	0.6 µm	8 mm	1 mm
4137507	700 – 800	0,01	26 µm	9 µm	0.6 µm	8 mm	1 mm
4137508	800 – 900	0,01	28 µm	11 µm	0.6 µm	8 mm	1 mm
4137509	900 – 1000	0,01	30 µm	11 µm	0.6 µm	8 mm	1 mm
