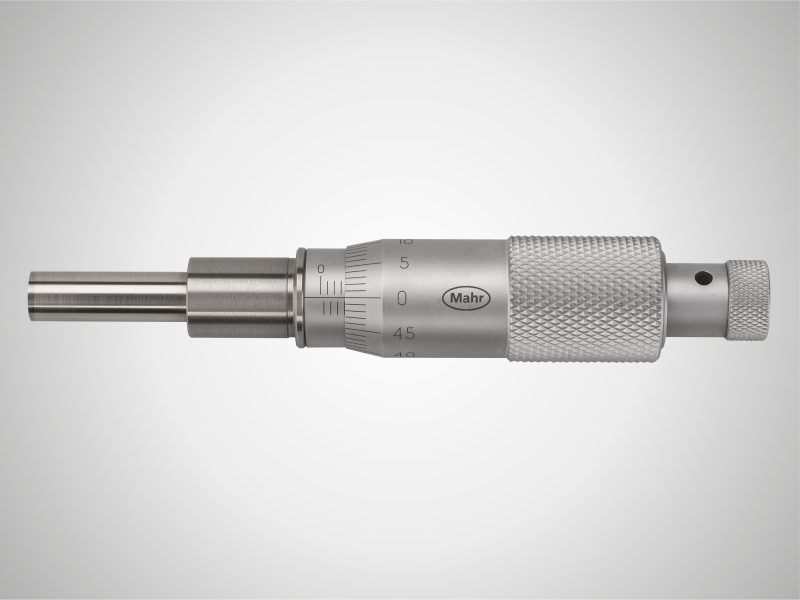

MICROMAR 46 / 46 H - MICROMETER HEAD

MICROMAR 46 / 46 H – MICROMETER HEAD

MICROMAR 46 MICROMETER HEAD Operating and display units with satin chrome finish Stainless spindle is hardened throughout and ground Technical Data Order no. Measuring range mm Graduation value mm Error limit µm Spindle diameter Spindle thread pitch_mm 4183021 0 – 6.5 0,01 3 µm 3.5 mm 0.5 mm 4183023 0 – 50 0,01 5 µm

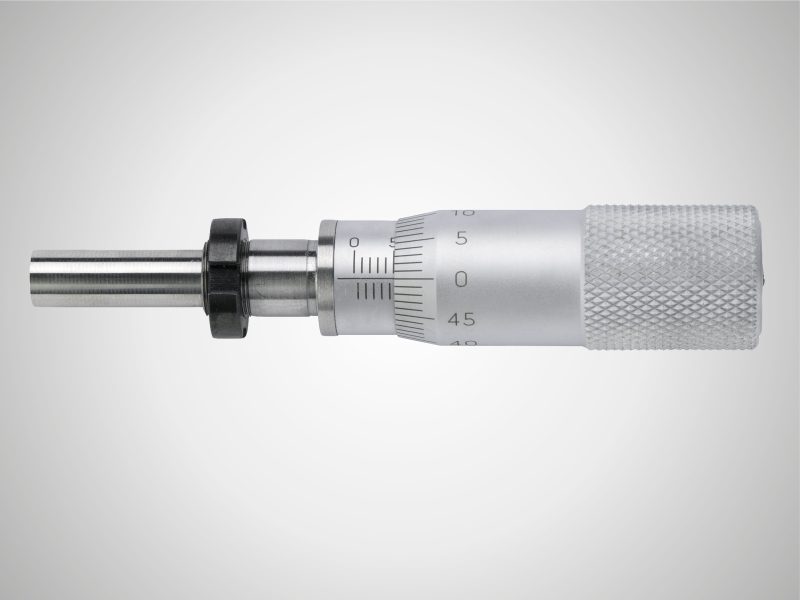

MICROMAR 46 MICROMETER HEAD

Operating and display units with satin chrome finish
Stainless spindle is hardened throughout and ground

Micrometer

Technical Data

Order no.	Measuring range mm	Graduation value mm	Error limit µm	Spindle diameter	Spindle thread pitch_mm
4183021	0 – 6.5	0,01	3 µm	3.5 mm	0.5 mm
4183023	0 – 50	0,01	5 µm	7.5 mm	0.5 mm
4183024	0 – 25	0,01	3 µm	6.35 mm	0.5 mm
4183025	0 – 13	0,01	3 µm	5 mm	0.5 mm
4183030	0 – 25	0,01	3 µm	6.35 mm	0.5 mm
