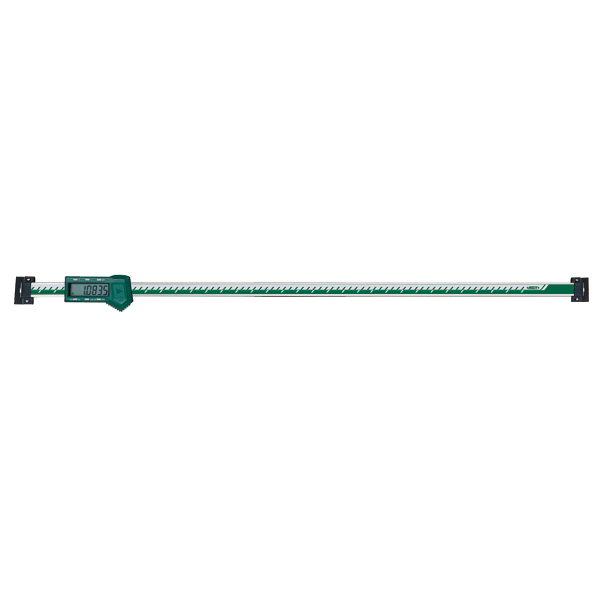

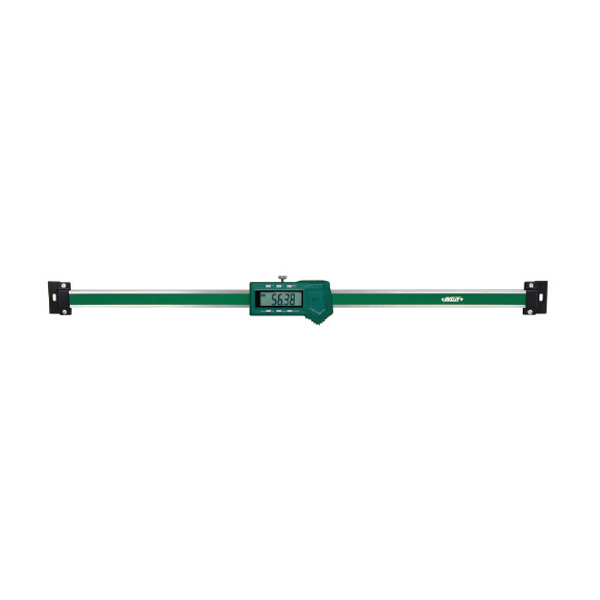

INSIZE DIGITAL HORIZONTAL SCALES (CODE – 7101)

Non waterproof Resolution: 0.01mm/0.0005" Buttons type A: on/off, zero, mm/inch, type B: on/off, zero, mm/inch, ABS, data preset Automatic power off, move the digital unit to turn on power Battery CR2032 Data output Made of stainless steel Supplied with bracket to be mounted on the back

Download Catalog

With data interface (data output cable code 7315-21)

Code	Range	Type	Accuracy	L (mm)	C (mm)	d (mm)
7101-100A	100mm	A	±0.02mm	215	16	4
7101-150A	150mm	A	±0.03mm	265	16	4
7101-200A	200mm	A	±0.03mm	315	16	4
7101-300A	300mm	A	±0.04mm	445	16	4

With data interface (data output cable code 7315-22)

Code	Range	Type	Accuracy	L (mm)	C (mm)	d (mm)	e (mm)	f (mm)
7101-400A	400mm	B	±0.05mm	590	24	5.5	8	45
7101-500A	500mm	B	±0.05mm	690	24	5.5	8	45
7101-600A	600mm	B	±0.08mm	790	24	5.5	8	45
7101-800A	800mm	B	±0.10mm	990	24	5.5	8	45
7101-1000A	1000mm	B	±0.10mm	1240	31	10.5	10	60

digital horizontal scale-7101_01

Non waterproof
Resolution: 0.01mm/0.0005″
Buttons type A: on/off, zero, mm/inch, type B: on/off, zero, mm/inch, ABS, data preset
Automatic power off, move the digital unit to turn on power
Battery CR2032
Data output
Made of stainless steel

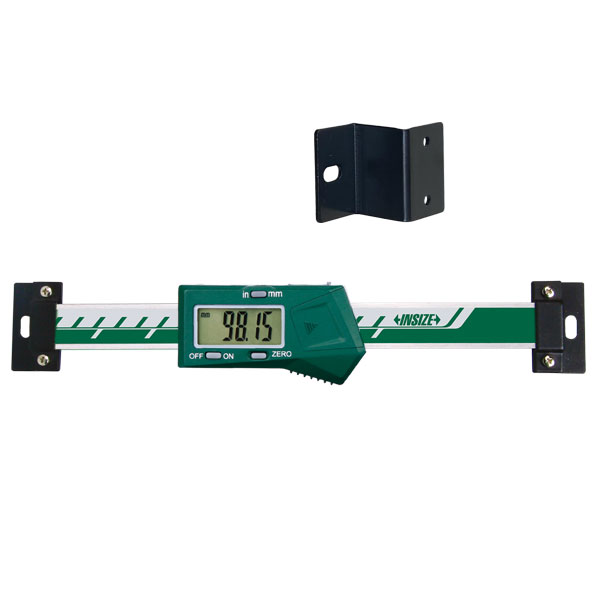

Supplied with bracket to be mounted on the back
