MARAMETER 57B - THICKNESS GAGE

MARAMETER 57B – THICKNESS GAGE

MARAMETER PORTABLE THICKNESS GAGES Solid casting with ribbed frame provides strength and rigidity for accurate measurements Furnished with a lift lever so work can be easily placed between the contacts Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials 4.75 mm/ .187“ diameter radiused upper contact normally provided

MARAMETER PORTABLE THICKNESS GAGES

Solid casting with ribbed frame provides strength and rigidity for accurate measurements
Furnished with a lift lever so work can be easily placed between the contacts
Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials
4.75 mm/ .187“ diameter radiused upper contact normally provided
102 mm/ 4“ throat depth for part clearance
Indicator mounts with adjustable back for quick positioning for each gaging requirement
Available with dial indicator or digital electronic indicator

Thickness gage

Technical data

Order no.	Product type	Measuring range inches	Measuring range mm	Throat depth mm
2051884	EMD-57B-11	0 – 1″	0 – 21.5	102 mm
2051885	EMD-57B-11D	0 – 1″	0 – 21.5	102 mm
2057548			0 – 25	102 mm
2057549			0 – 12.5	102 mm

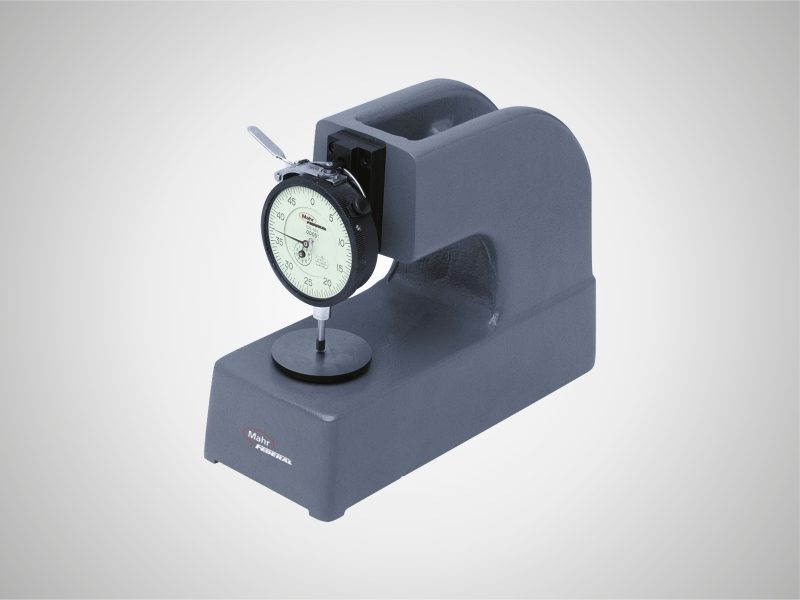

MARAMETER 57B-12 PORTABLE THICKNESS GAGES

Solid casting with ribbed frame provides strength and rigidity for accurate measurements
Furnished with a lift lever so work can be easily placed between the contacts
Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials
4.75 mm/ .187“ diameter radiused upper contact normally provided
102 mm/ 4“ throat depth for part clearance
Indicator mounts with adjustable back for quick positioning for each gaging requirement
Available with dial indicator or digital electronic indicator

Thickness gage

Technical data

Order no.	Product type	Measuring range inches	Throat depth mm	Graduation value inch
2050976	57B-11	0 – 1″	102 mm	.001″
2050978	57B-12	0 – .50″	102 mm	.0005″

MARAMETER 57B-12M PORTABLE THICKNESS GAGES

Solid casting with ribbed frame provides strength and rigidity for accurate measurements
Furnished with a lift lever so work can be easily placed between the contacts
Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials
4.75 mm/ .187“ diameter radiused upper contact normally provided
102 mm/ 4“ throat depth for part clearance
Indicator mounts with adjustable back for quick positioning for each gaging requirement
Available with dial indicator or digital electronic indicator

Thickness gage
