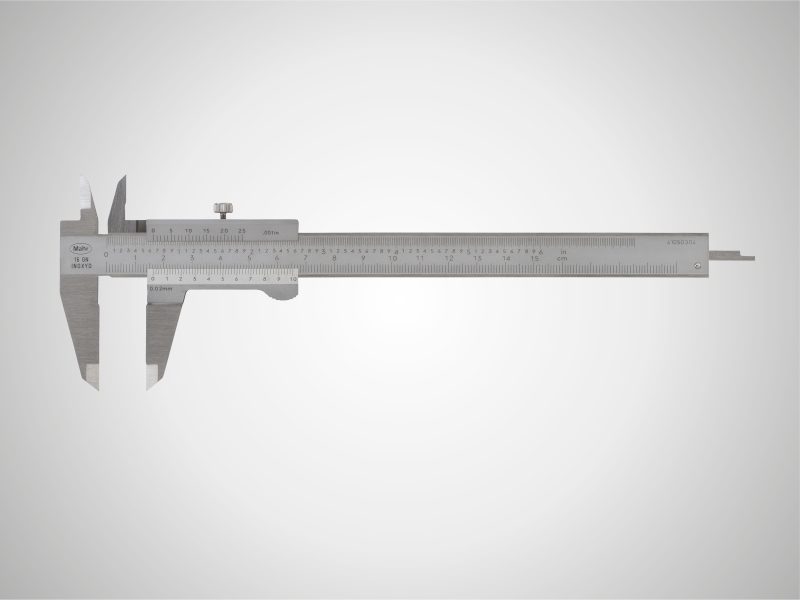

MARCAL 16 GN - CALIPER WITH ANALOG DISPLAY, 0.02 MM / .001", LOCKING SCREW ABOVE

MARCAL 16 GN – CALIPER WITH ANALOG DISPLAY, 0.02 MM / .001″, LOCKING SCREW ABOVE

MARCAL 16 GN CALIPER WITH ANALOG DISPLAY Vernier and main scale have a satin chrome finish for glare free reading Locking screw above Measuring surfaces made of steel Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Raised guideway for the protection of the scale thread table case

MARCAL 16 GN CALIPER WITH ANALOG DISPLAY

Vernier and main scale have a satin chrome finish for glare free reading
Locking screw above
Measuring surfaces made of steel
Measuring blade for inside measurements
Slide and beam made of hardened stainless steel
Step measuring function
Raised guideway for the protection of the scale
thread table
case

Technical data

Order no.	Measuring range mm	Measuring range inches	Readings mm	Vernier value inch	Error limit (mm)	Error limit inches	Standard	Depth Rod
4100660	0 – 130		0.02 mm		0.05 mm		Factory standard	rectangular
4100661	0 – 180		0.02 mm		0.05 mm		Factory standard	rectangular
4100662	0 – 280		0.02 mm		0.05 mm		Factory standard	rectangular
4100680	0 – 130	0 – 5″	0.02 mm	.001″	0.05 mm	.0015″	Factory standard	rectangular
4100681	0 – 180	0 – 7″	0.02 mm	.001″	0.05 mm	.002″	Factory standard	rectangular
4100682	0 – 280	0 – 11″	0.02 mm	.001″	0.05 mm	.002″	Factory standard	rectangular

MARCAL 16 GN CALIPER WITH ANALOG DISPLAY

Vernier and main scale have a satin chrome finish for glare free reading
Locking screw above
Measuring surfaces made of steel
Measuring blade for inside measurements
Slide and beam made of hardened stainless steel
Step measuring function
Raised guideway for the protection of the scale
thread table
case

Technical data

Order no.	Measuring range mm	Measuring range inches	Readings mm	Vernier value inch	Error limit (mm)	Error limit inches	Standard	Depth Rod
4100650	0 – 150		0.02 mm		0.05 mm		Factory standard	rectangular
4100651	0 – 200		0.02 mm		0.05 mm		Factory standard	rectangular
4100652	0 – 300		0.02 mm		0.05 mm		Factory standard	rectangular
4100670	0 – 150	0 – 6″	0.02 mm	.001″	0.05 mm	.0015″	Factory standard	rectangular
4100671	0 – 200	0 – 8″	0.02 mm	.001″	0.05 mm	.002″	Factory standard	rectangular
4100672	0 – 300	0 – 12″	0.02 mm	.001″	0.05 mm	.002″	Factory standard	rectangular
