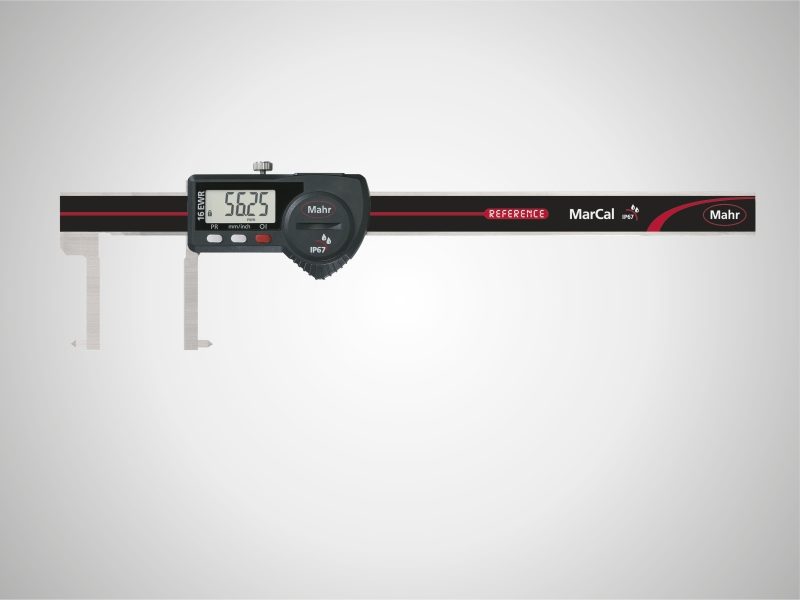

MARCAL 16 EWR-SI DIGITAL CALIPER FOR SPECIAL APPLICATIONS

High contrast analog display Locking screw above Lapped guideway Slide and beam made of hardened stainless steel Immediate measurements due to the Reference System Raised guideway for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide Marcal digital caliper can support USB Opto RS232C Digimatic
  • High contrast analog display
  • Locking screw above
  • Lapped guideway
  • Slide and beam made of hardened stainless steel
  • Immediate measurements due to the Reference System
  • Raised guideway for the protection of the scale
  • Excellent resistance against dust, coolants and lubricants
  • Dirt wipers are integrated in the slide
  • Marcal digital caliper can support USB
  • Opto RS232C
  • Digimatic
  • IP 67
  • battery
  • instruction manual
  • case
  • Battery life approx. 3 years

Height of digits

  • 8.5 mm



 Marcal digital caliper
 Marcal digital caliper  Marcal digital caliper  Marcal digital caliper  Marcal digital caliper



Order no. Measuring range mm Measuring range inches Resolution mm/inch Error limit (mm) Error limit inches Standard Depth Rod
4103078
20 – 170
0.8 – 6.7″
0.01 / .0005″
0.03 mm
.001″
Factory standard
none

Functions of Marcal Digital Caliper

  • ON/OFF
  • AUTO-ON / OFF
  • mm/inch
  • LOCK function (key lock)
  • RESET (set display to zero)
  • PRESET (for entering a numerical value)
  • DATA (data transmission via connection cable)
