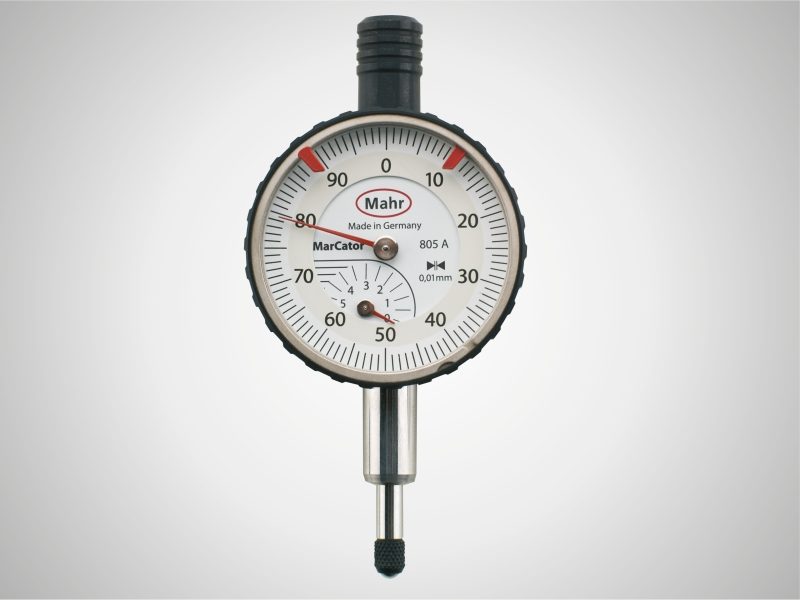

MARCATOR – SMALL DIAL INDICATOR, MM MARCATOR 805 A SMALL PRECISION DIAL INDICATORS High contrast dial face Adjustable tolerance markers Chrome plated housing Lifter protection cap on the measuring spindle Precision gears and pinions Technical data Order no. Product type Measuring span in mm Graduation value mm Type of dial face Range per rev. in

MARCATOR – SMALL DIAL INDICATOR, MM

MARCATOR 805 A SMALL PRECISION DIAL INDICATORS

High contrast dial face
Adjustable tolerance markers
Chrome plated housing
Lifter protection cap on the measuring spindle
Precision gears and pinions

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Error limit measuring range µm	Error limit 1 revolution µm	Error limit 1/2 revolution µm	Error limit 1/10 revolution µm	Hysteresis fu (µm)	Repeatability fw (µm)	Standard	Overtravel mm	Scale diameter	Dial color
4324000	803 S	3 mm	0.01 mm	0 – 50	0.5 mm	10 µm	9 µm	8 µm	5 µm	3 µm	3 µm	DIN 878	0.1 mm	34 mm	white
4324050	803 A	3 mm	0.01 mm	0 -50	0.5 mm	10 µm	9 µm	8 µm	5 µm	3 µm	3 µm	DIN 878	0.1 mm	34 mm	white
4324060	805 A	5 mm	0.01 mm	0 – 100	1 mm	12 µm	10 µm	9 µm	5 µm	3 µm	3 µm	DIN 878	0.1 mm	34 mm	white
