MARCATOR – PERPENDICULAR DIAL INDICATORS

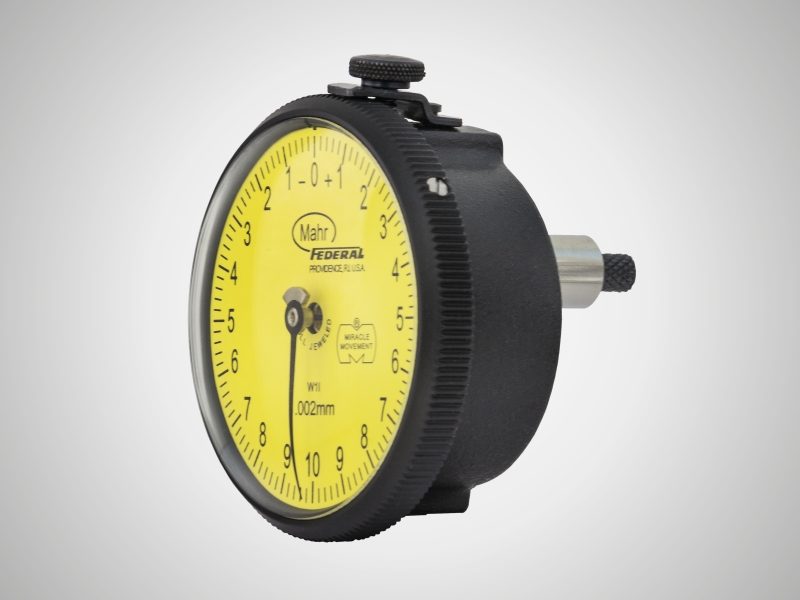

MARCATOR W8I PERPENDICULAR DIAL INDICATORS Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error

MARCATOR W8I PERPENDICULAR DIAL INDICATORS

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no-shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Normally furnished: balanced dial with + on right; mounting rod (see dimension drawings); regular contact point, .18” radiused, .250” long
Threaded stem versions available as an option; AD-59 (.5622 long x .500” OD for “J & W” styles), 3/8-32 internally threaded bushings and AD-60 (.687” long x .500” OD for “G & F” Models) purchased separately (bushings also available separately)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Standard	Scale diameter	Dial color
2011344	I8I	2.5 mm	0.025 mm	0-125-0	2.5 mm	ANSI	43 mm	yellow
2014653	W1I	0.2 mm	0.002 mm	0-10-0	0.2 mm	ANSI	57 mm	yellow
2014657	W6I	1 mm	0.01 mm	0-50-0	1 mm	ANSI	57 mm	yellow
2014659	W8I	2.5 mm	0.025 mm	0-125-0	2.5 mm	ANSI	57 mm	yellow
