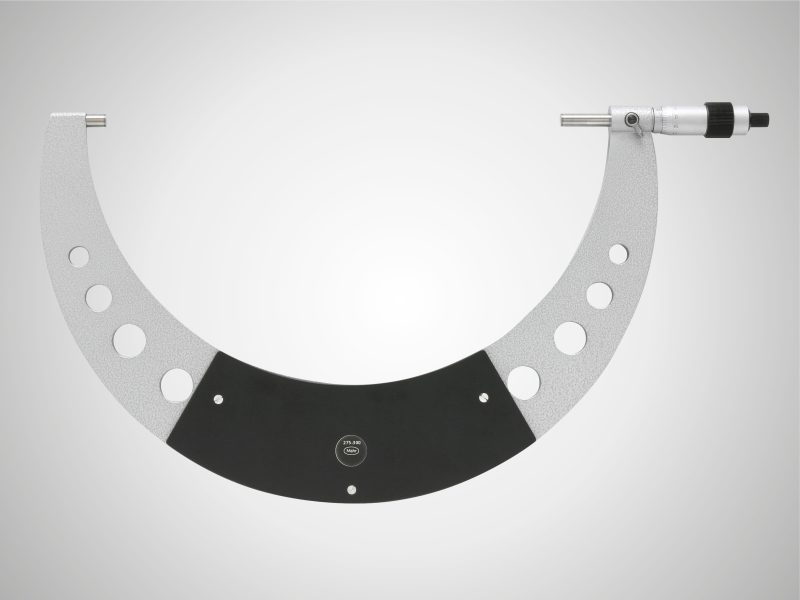

MICROMAR 40 AG MICROMETER

MICROMAR 40 AG MICROMETER

Operating and display units with satin chrome finish Spindle and anvil made of hardened steel, carbide tipped Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight Heat insulators Ratchet is integrated in the thimble Locking device instruction manual setting value case Technical Data Order no. Measuring

Operating and display units with satin chrome finish
Spindle and anvil made of hardened steel, carbide tipped
Hard lacquered steel frame, from 400 mm the frame is made from a steel tube to reduce weight
Heat insulators
Ratchet is integrated in the thimble
Locking device
instruction manual
setting value
case

Technical Data

Order no.	Measuring range mm	Graduation value mm	Error limit µm	Spindle diameter	Spindle thread pitch_mm
4134500	200 – 225	0,01	8 µm	8 mm	0.5 mm
4134501	225 – 250	0,01	8 µm	8 mm	0.5 mm
4134502	250 – 275	0,01	9 µm	8 mm	0.5 mm
4134503	275 – 300	0,01	9 µm	8 mm	0.5 mm
4134504	300 – 325	0,01	10 µm	8 mm	0.5 mm
4134505	325 – 350	0,01	10 µm	8 mm	0.5 mm
4134506	350 – 375	0,01	11 µm	8 mm	0.5 mm
4134507	375 – 400	0,01	11 µm	8 mm	0.5 mm
4134508	400 – 425	0,01	12 µm	8 mm	0.5 mm
4134509	425 – 450	0,01	12 µm	8 mm	0.5 mm
4134510	450 – 475	0,01	13 µm	8 mm	0.5 mm
4134511	475 – 500	0,01	13 µm	8 mm	0.5 mm
