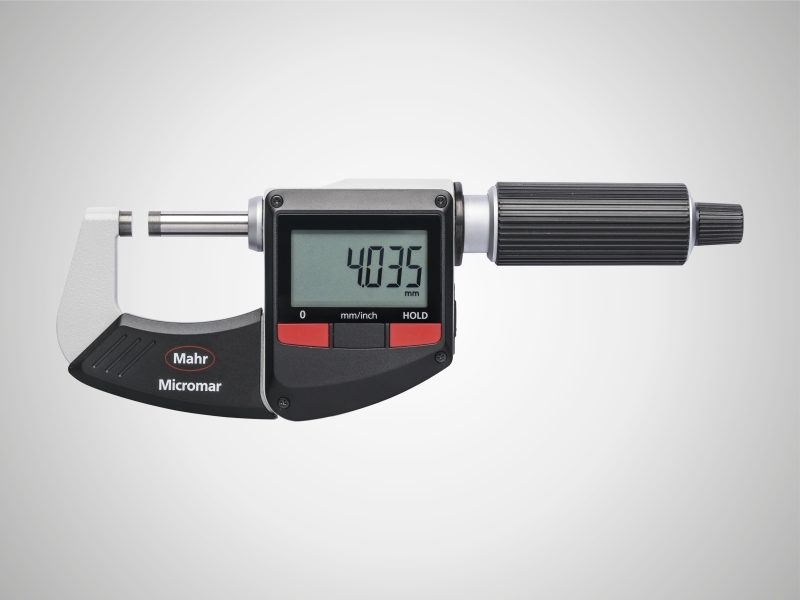

MICROMAR 40 ER DIGITAL MICROMETER

High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble IP 40 instruction manual battery case Height of Digits 10 mm       Technical Data Order no. Measuring range mm Measuring range inches Resolution mm/inch Error limit µm Spindle
  • High contrast analog display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • IP 40
  • instruction manual
  • battery
  • case

Height of Digits

  • 10 mm
 Digital micrometer
 Digital micrometer  Digital micrometer

Technical Data

Order no. Measuring range mm Measuring range inches Resolution mm/inch Error limit µm Spindle diameter Spindle thread pitch_mm Measuring force (N)
4157010
0 – 25
0 – 1″
0.001 / .00005″
2 µm
6.5 mm
0.5 mm
5 – 10

Functions

  • RESET (set display to zero)
  • mm/inch
  • HOLD (storage of measured values)
  • LOCK function (key lock)
