Post Holders Fat

NOGA economical Post holders with fine adjustment on top

NOGA PH (Post Holder) holders are the latest improvement of the traditional indicator holder.
• New fine adjustment on the top with universal swivel clamp.
• Holds 6mm, 8mm, 3/8”, dovetail and back lug.
• Powerful on/off magnetic base.
• Strong arm lock by using 3 points clamp.
• Easy to set up gauges into required position.
• Nickel plated arms.

Post holders

All measurements are in mm unless otherwise mentioned.
Holder
Arm length and diameter
3 Points Clamp
Magnet
Order no.
Bottom Thread
Weight
Post
Arm
Order No.
Force
Dimension

D3
[Kg]
Dia (D1)X Length (L1)
Dia (D2)X Length (L2)

[N]


W
L
H
PH6400
M8
1.700
ø14 x 203
ø12 x 175
PH0310
800
50
60
55

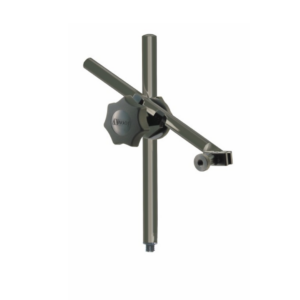

PH6410
M8
0.700
ø14 x 203
ø12 x 175
PH0310

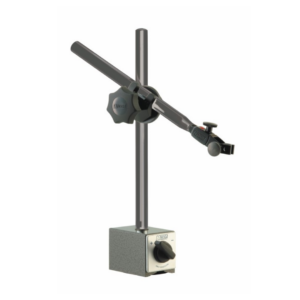

PH6600
M8
2.300
ø16 x 260
ø16 x 175
PH0312
1000
50
75
55

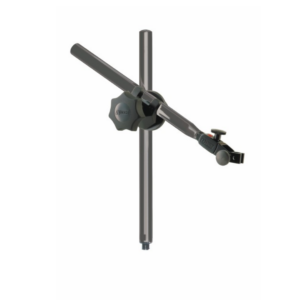

PH6610
M8
1.070
ø16 x 260
ø16 x 175
PH0312

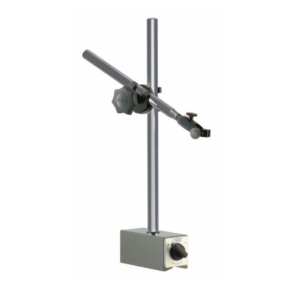

PH6800
M10 x 1.25
3.450
ø18 x 350
ø16 x 210
PH0313
1300
50
60
55

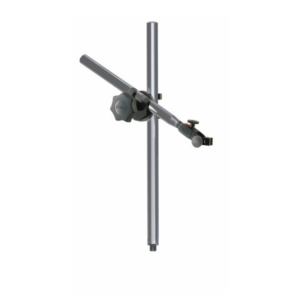

PH6810
M10 x 1.25
1.450
ø18 x 350
ø16 x 210
PH0313
