DIGITAL INDICATOR FOR BORE GAGES CODE – 2108

Specially designed for bore gages The minimum value tracking function can find the diameter automatically Read the diameter directly, after imputing the size of setting ring Reading in digit and analog Display can be rotated by 320º Button function: minimum value tracking, calibration, data preset, inch/metric conversion, absolute/incremental measurement CR2032 battery, automatic power off Data

Download PDF

Specially designed for bore gages
The minimum value tracking function can find the diameter automatically
Read the diameter directly, after imputing the size of setting ring
Reading in digit and analog
Display can be rotated by 320º
Button function: minimum value tracking, calibration, data preset, inch/metric conversion, absolute/incremental measurement
CR2032 battery, automatic power off
Data output
Optional accessory: data output system, backs (page 132), contact points (page 128~131)

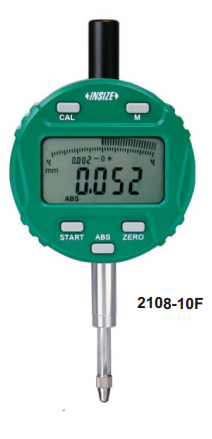

digital indicator for bore gauge-2108_01

Code	Range	Resolution	Accuracy	Hysteresis	Remark
2108-10F*	12.7mm/0.5″	0.002mm/0.0001″	20µm	10µm	flat back
2108-101F*	12.7mm/0.5″	0.001mm/0.00005″”	5µm	3µm	flat back
