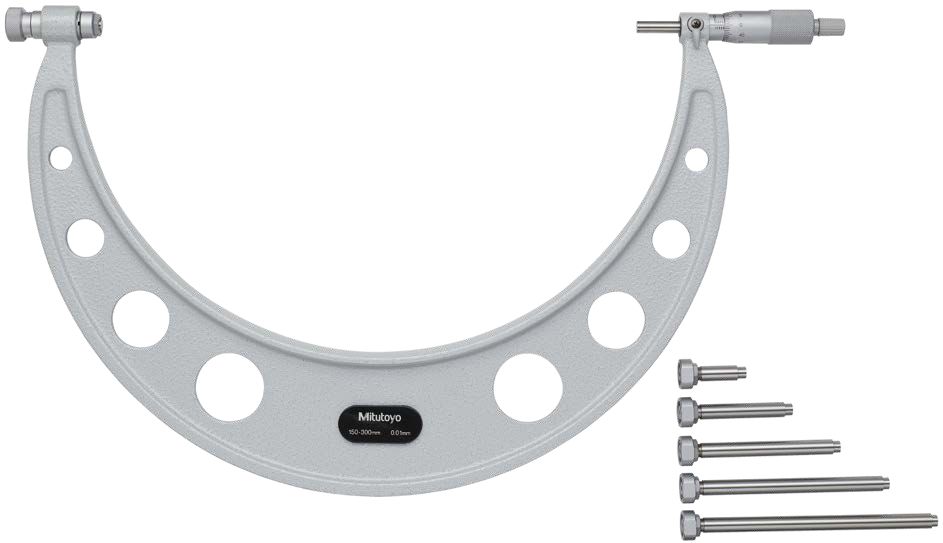

Mitutoyo 103 Outside Micrometers

Buy Now

Metric

Code No	Range (mm)	Graduation (mm)	Spindle feed error (μm)	Flatness (μm)	Parallelism (μm)	Interchangeable anvils	Settting Standard		Micrometer head stroke (mm)
Code No	Range (mm)	Graduation (mm)	Spindle feed error (μm)	Flatness (μm)	Parallelism (μm)	Interchangeable anvils	Qty	Size (mm)	Micrometer head stroke (mm)
Analog
104-171*	0 – 50	0.01	3	0.6	2	1 Pc.	1	25	25
104-139A	0 -100				3	4 Pcs.	3	25 – 75
104-135A	0 – 150					6 Pcs.	5	25 – 125
104-161A	50 – 150					4 Pcs.	4	50 – 125
104-140A	100 – 200				4	4 Pcs.	4	100 – 175
104-136A	150 – 300				5	6 Pcs.	6	150 – 275
104-141A	200 – 300				5	4 Pcs.	4	200 – 275
104-142A	300 – 400			1.0	6			300 – 375
104-143A	400 – 500				7			400 – 475
104-144A	500 – 600				8			500 – 575
104-145A	600 – 700				9			600 – 675
104-146A	700 – 800				10			700 – 775
104-147A	800 – 900				11			800 – 875
104-148A	900 – 1000				12			900 – 975

Inch

Code No	Range (in)	Graduation (in)	Spindle feed error (μm)	Flatness (in)	Parallelism (in)	Interchangeable anvils	Settting Standard		Micrometer head stroke (in)
Code No	Range (in)	Graduation (in)	Spindle feed error (μm)	Flatness (in)	Parallelism (in)	Interchangeable anvils	Qty	Size (in)	Micrometer head stroke (in)
Analog
104-165	0 – 2	0.0001	0.00015	0.000024	0.00008	1 Pc.	1 Pc.	1	1
104-149	0 – 4	0.001			0.00012	4 Pcs.	4	1 – 3
104-137	0 – 6					6 Pcs.	6	1 – 5
104-162	2 – 6					4 Pcs.	4	2 – 5
104-150	4 – 8				0.00016	4 Pcs.	4	4 – 7
104-138	6 – 12				0.0002	6 Pcs.	6	6 – 11
104-151	8 – 12				0.0002	4 Pcs.	4	8 – 11
104-152	12 – 16			0.00004	0.00024	4 Pcs.	4	12 – 15
104-201	12 – 18				0.00024	6 Pcs.	6	12 – 17
104-153	16 – 20				0.00028	6 Pcs.	6	16 – 19
104-202	18 – 24				0.00032	4 Pcs.	4	18 – 23
104-154	20 – 24				0.00032			20 – 23
104-155	24 – 28				0.00036			24 – 27
104-203	24 – 30				0.00036	6 Pcs.	6	24 – 29
104-156	28 – 32				0.0004	4 Pcs.	4	28 – 31
104-204	30 – 36				0.00044	6 Pcs.	6	30 – 35
104-157	32 – 36				0.00044	4 Pcs.	4	32 – 35
104-158	36 – 40				0.00048	4 Pcs.	4	36 – 39
104-205	36 – 42				0.00048	6 Pcs.	6	36 – 41
