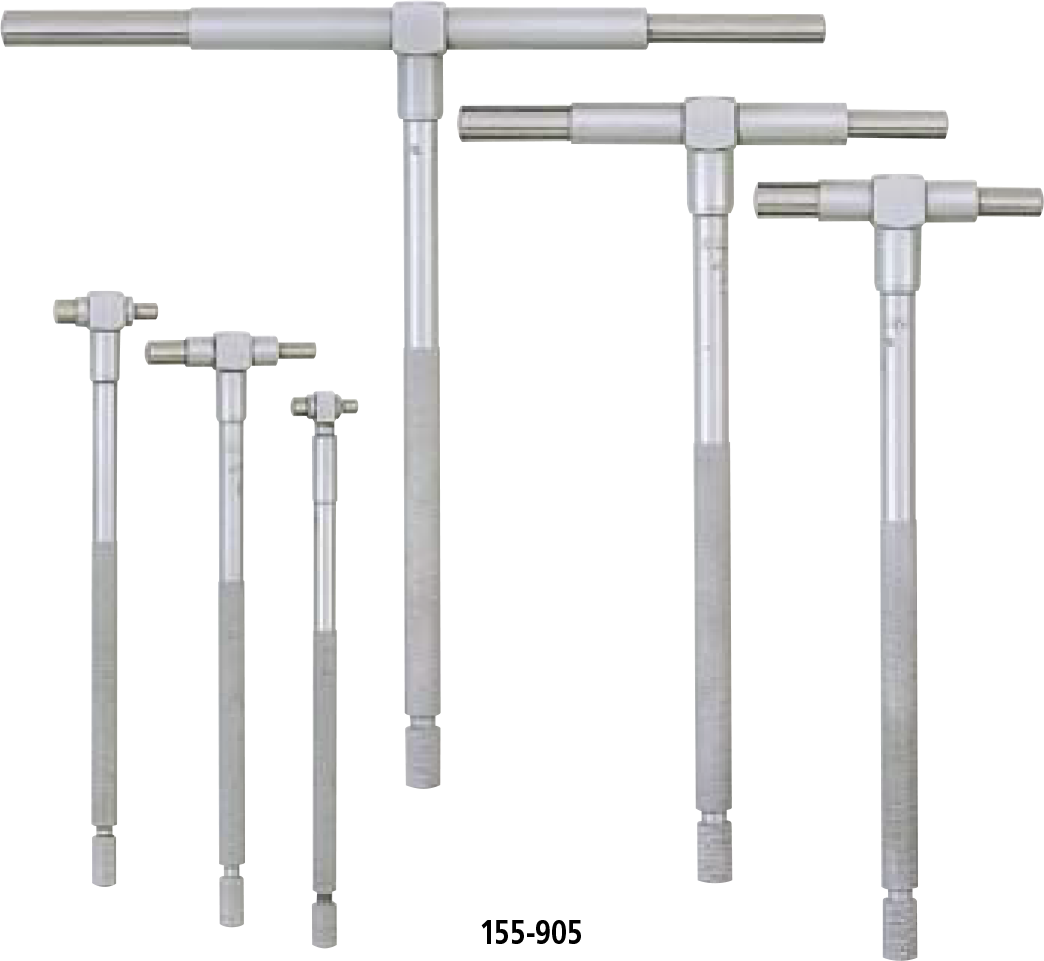

Mitutoyo-SERIES 155-Telescoping Gage Set

MITUTOYO-SERIES 155-TELESCOPING GAGE SET

A spring-loaded plunger expands within a bore (or groove) and is locked in place, allowing measurement of diameter (or width) with an outside micrometer after extraction. SPECIFICATIONS Metric Order No. Range 6-gage Set 155-905 8 – 150mm Gages included 155-127 8 – 12.7mm 155-128 12.7 – 19mm 155-129 19 – 32mm 155-130 32 – 54mm

SPECIFICATIONS

Metric

Order No.	Range
6-gage Set
155-905	8 – 150mm
Gages included
155-127	8 – 12.7mm
155-128	12.7 – 19mm
155-129	19 – 32mm
155-130	32 – 54mm
155-131	54 – 90mm
155-132	90 – 150mm

Inch

Order No.	Range
6-gage Set
155-903	.313″ – 6″
Gages included
155-121	.313″ – .5″
155-122	.5 – .75″
155-123	.75- 1.25″
155-124	1.25 – 2.125″
155-125	2.125 – 3.5″
155-126	3.5 – 6″

DIMENSIONS

Telescoping Gage

A spring-loaded plunger expands within a bore (or groove) and is locked in place, allowing measurement of diameter (or width) with an outside micrometer after extraction.

Telescoping Gage
