Adjustable hand dial indicators
- The hand position can be adjusted independently of the position of the spindle by rotating the top knob.
DIMENSIONS
* Contact points, other than dedicated types, cannot be installed.
* The shoulder on a contact point (standard accessory) acts as a stop to prevent spindle overrun that may otherwise damage the indicator. For this reason, if you need to install an optional contact point with an outside diameter smaller than 7mm, use a washer (with outside diameter of at least 7mm, inside diameter of 3mm, and thickness of approx. 0.5mm) placed between the contact point and the spindle.
SPECIFICATIONS
Metric
| Order No. | Graduation | Range (range/rev) | Accuracy | Repeat- ability | Dial reading | Measuring force | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| w/ lug | Flat-back | Overall | Retrace | 1/10 Rev | 1 Rev | |||||

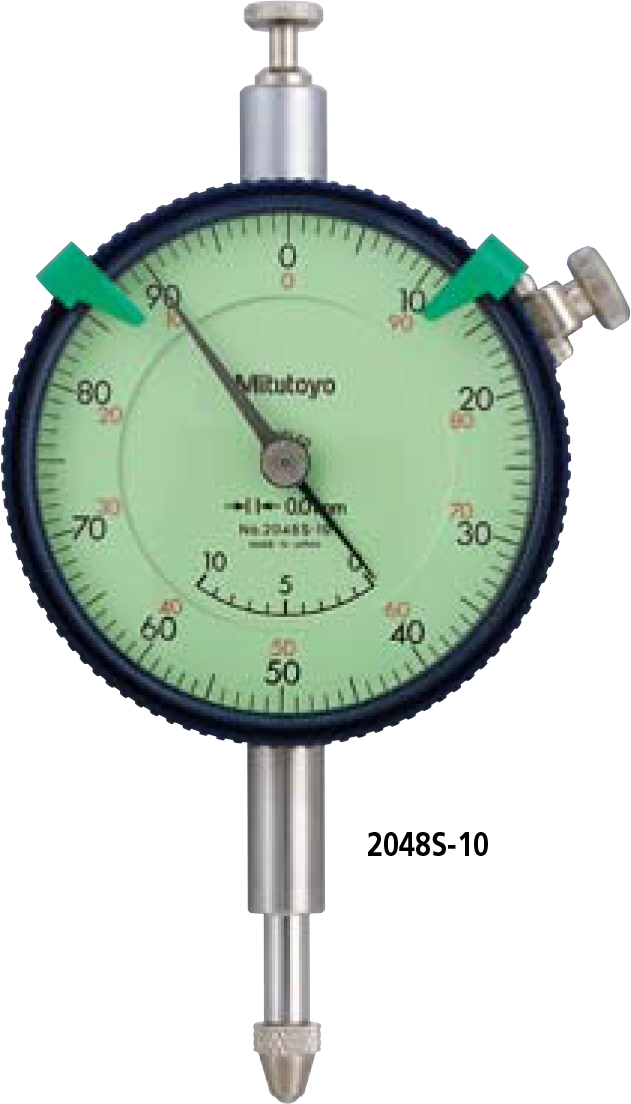

| 2048S-10 | 2048SB-10 | 0.01mm | 10mm (1mm) | 15µm | 3µm | 5µm | 10µm | 3µm | ±0-100 | 1.4N or less |
* Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed.
Inch
| Order No. | Graduation | Range (range/rev) | Accuracy | Repeat- ability | Dial reading | Measuring force | ||
|---|---|---|---|---|---|---|---|---|
| w/ lug | Flat-back | First 1 Rev / 2.5 Rev / 10 Rev | Retrace | |||||
| 2915S-10 | 2915SB-10 | .001” | .5” (.1”) | ±.001” / ±.001” / ±.001 | .0002 | ±.0002 | ±0-100 | 1.8N or less |
| 2918S-10 | 2918SB-10 | .001” | .5” (.1”) | ±.001” / ±.001” / ±.001 | .0002 | ±.0002 | 0-50-0 | 1.8N or less |
* Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed.
FEATURES
Metric
Inch
