Mitutoyo SERIES 369 | Disk Micrometers 369,227,169

MITUTOYO SERIES 369 DISC MICROMETER NON ROTATING SPINDLE TYPE

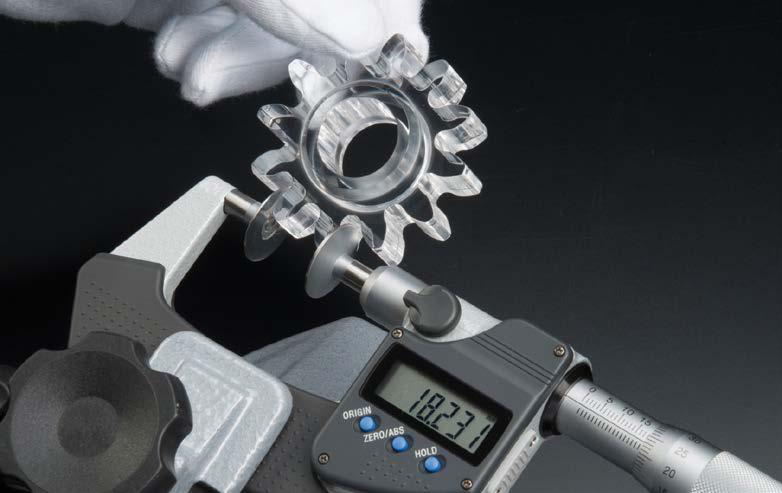

Can be used for making root tangent measurements on spur gears and helical gears.
Determination of the root tangent length: refer to "Quick Guide to Precision Measuring Instruments"
Non-rotating spindle eliminates torque on - workpiece.
Measurable range of gear pitch: 0.5 to 6 module.
Equipped with Ratchet Stop for constant measuring force.

Download Catalog

Metric

Code No.	Range (mm)	Resolution (mm)	Anvil Dia. (μm)	Maximum permissible error JMPE (μm)	Flatness (μm)	Parallelism (μm)	Measuring force (N)
With SPC data output
36-250-30	0 – 25	0.001	Ø20	±4	1	4	3 – 8
36-251-30	25 – 50			±4		4
36-252-30	50 – 75			±6		6
36-253-30	75 – 100			±6		6

Inch/ Metric

Code No.	Range (mm)	Resolution (mm)	Anvil Dia. (μm)	Maximum permissible error JMPE (μm)	Flatness (μm)	Parallelism (μm)	Measuring force (N)
With SPC data output
36-350-30	0 – 1	0.0005 in/ 0.001 mm	Ø0.787	±0.0002	0.0004	0.0002	3 – 8
36-351-30	1 – 2			±0.0002		0.0002
36-352-30	2 – 3			±0.0003		0.0003
36-353-30	3 – 4			±0.0003		0.0003

Power source : SR44 batery (1 pc.). 938882 included as standard (for opertional checks)
Battery life: Approx. 2.4 years under normal use.
Position deection method : Electromagnetic rotary sensor
Standrad accessories: setting standard , 1pc. (except for measuring range 0 to 25 mm (0 to 1 in) models) Spanner (301336), 1pc.

Can be used for making root tangent measurements on spur gears and helical gears.
Determination of the root tangent length: refer to “Quick Guide to Precision Measuring Instruments”
Non-rotating spindle eliminates torque on – workpiece.
Measurable range of gear pitch: 0.5 to 6 module.
Equipped with Ratchet Stop for constant measuring force.
