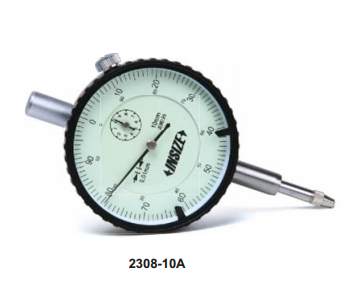

DIAL INDICATOR CODE – 2308
- Jeweled bearing
- Supplied with limit pointers and bezel clamp
- Optional accessory: backs (page 132), contact points (page 128~131)
| Code |
Range |
Graduation |
Accuracy/td> |
Hysteresis |
Range/rev |
Dial reading/td> |
Remark |
| 2308-3A* |
3mm |
0.01mm |
14µm |
3µm |
1mm |
0-100 |
lug back |
| 2308-5A* |
5mm |
0.01mm |
16µm |
3µm |
1mm |
0-100 |
lug back |
| 2308-10A* |
10mm |
0.01mm |
17µm |
3µm |
1mm |
0-100 |
lug back |
| 2308-3FA* |
3mm |
0.01mm |
14µm |
3µm |
1mm |
0-100 |
flat back |
| 2308-5FA* |
5mm |
0.01mm |
16µm |
3µm |
1mm |
0-100 |
flat back |
| 2308-10FA* |
10mm |
0.01mm |
17µm |
3µm |
1mm |
0-100 |
flat back |
*Supplied with manufacturer calibration certificate
