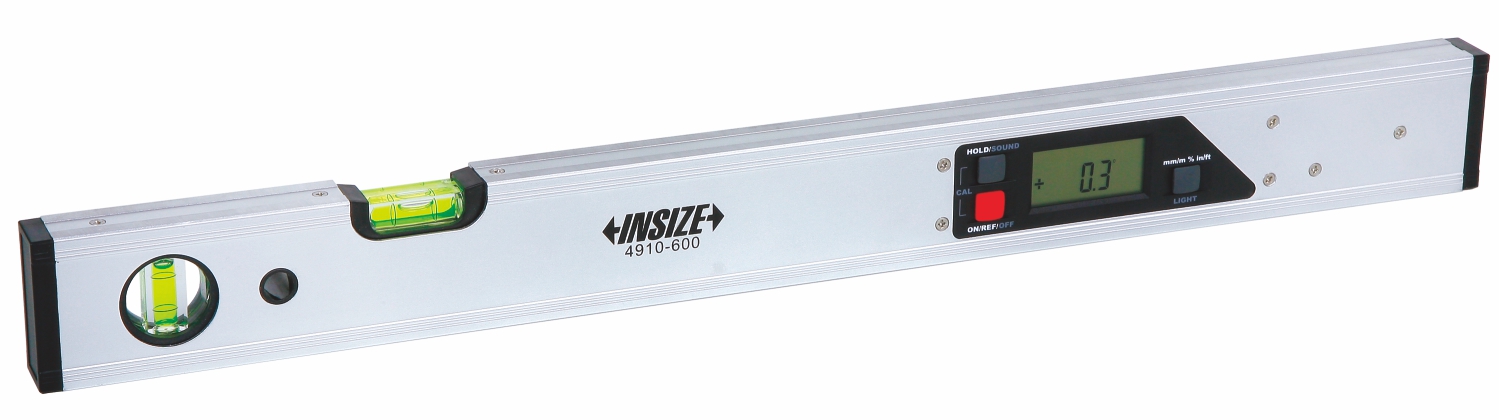

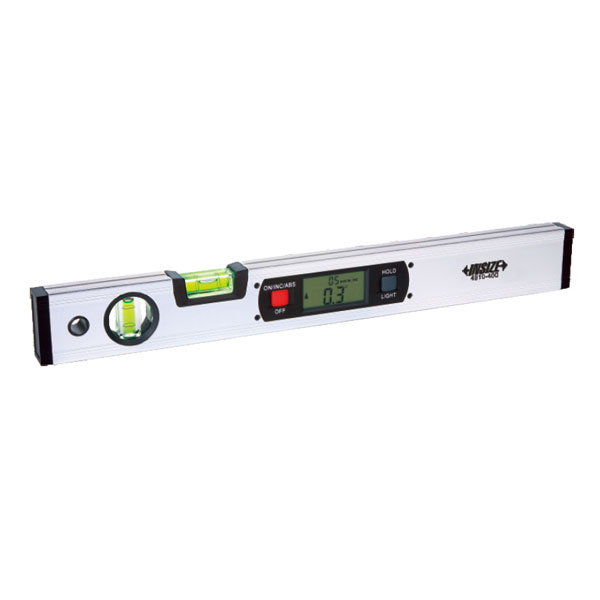

INSIZE DIGITAL LEVEL (CODE – 4910)

With transverse and longitudinal vials Used as level and protractor Aluminum frame Magnetic bottom The sea level is permanently set inside the chip, zero setting is not needed when batteries are replaced Buttons: ON/OFF, absolute and incremental measurement, keep the reading, buzzer alarm, unit (mm/m, %, in/ft) conversion, backlight The display flips over when the bottom faces up Two AAA batteries Automatic power off

Download Catalog

Code	Range	Resolution	Accuracy	Remarks	L (mm)	L1 (mm)	a (mm)	b (mm)
4910-400	0-360 90°x4)	angle: 0.1° ; slope: 1mm/m	±0.2°	both angle and slope are displayed	416	400	50	21
4910-600	0-360 90°x4)	at 0° and 90° : 0.05° (=0.8725 mm/m); at others : 0.1° (=1.745 mm/m)	0° & 90°: ±0.1°; at others: ° : ±0.2°	at 0° and 90 ° buzzer alarms	600	585	60	25

digital level-4910_01

With transverse and longitudinal vials
Used as level and protractor
Aluminum frame
Magnetic bottom
The sea level is permanently set inside the chip, zero setting is not needed when batteries are replaced
Buttons: ON/OFF, absolute and incremental measurement, keep the reading, buzzer alarm, unit (mm/m, %, in/ft) conversion, backlight
The display flips over when the bottom faces up
Two AAA batteries
Automatic power off
