DIGITAL NON ROTATING SPINDLE DISK MICROMETER CODE 3594

Measure root tangent length of gear Resolution 0.001mm/0.00005″ Non-rotating spindle Button function: on/off, set, mm/inch, ABS/INC, data output Data output SR44 or LR44 battery, automatic power off Ratchet stop Supplied with setting standards Optional accessory: data output system (code 7306-30, 7302-SPC2A, 7305-SPC3 ) Code Range Accuracy Parallelism L b 3594-25A 0-25mm/0-1″ 4μm 5μm 43 32

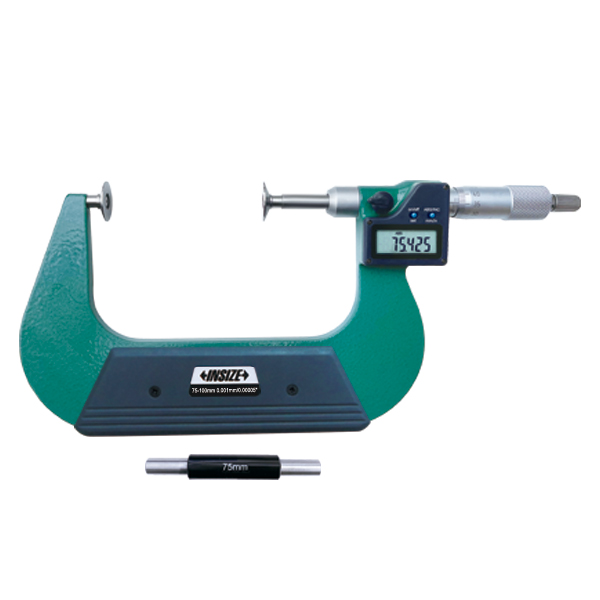

spindle disk micrometer-3594_2

Measure root tangent length of gear
Resolution 0.001mm/0.00005″
Non-rotating spindle
Button function: on/off, set, mm/inch, ABS/INC, data output
Data output
SR44 or LR44 battery, automatic power off
Ratchet stop
Supplied with setting standards
Optional accessory: data output system (code 7306-30, 7302-SPC2A, 7305-SPC3 )

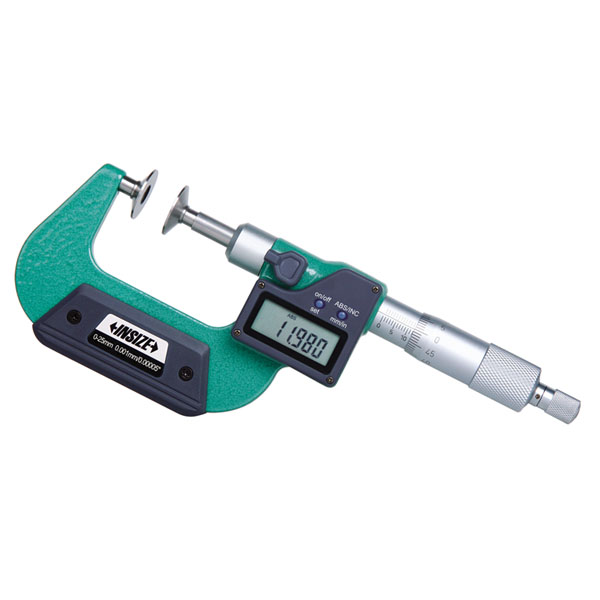

spindle disk micrometer-3594_1

Code	Range	Accuracy	Parallelism	L	b
3594-25A	0-25mm/0-1″	4μm	5μm	43	32
3594-50A	25-50mm/1-2″	4μm	5μm	68	44.5
3594-75A	50-75mm/2-3″	5μm	5μm	93	57
3594-100A	75-100mm/3-4″	5μm	5μm	118.5	70
