MARCATOR - DIAL INDICATOR ANSI/AGD GROUP 1

MARCATOR – DIAL INDICATOR ANSI/AGD GROUP 1

MARCATOR B6Q-RC DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft

MARCATOR B6Q-RC DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Error limit over 2.5 rotations (inches)	Standard	Scale diameter (inches)	Dial color
2011000	12I	.025″	.0001”	0-5-0	.010″	±.0001″	± .0001″	ANSI	1.75″	green
2011001	12I-RC	.025″	.0001”	0-10	.010″	±.0001″	± .0001″	ANSI	1.75″	green
2011004	12Q	.025″	.00025″	0-5-0	.010″	±.00025″	± .00025″	ANSI	1.75″	green
2011106	B3K	.050″	.00025″	0-10-0	.020″	±.00025″	± .00025″	ANSI	1.75″	green
2011107	B3K-RC	.050″	.00025″	0-20	.020″	±.00025″	± .00025″	ANSI	1.75″	green
2011110	B3Q	.050″	.0005″	0-10-0	.020″	±.0005″	± .0005″	ANSI	1.75″	green
2011111	B3Q-RC	.050″	.0005″	0-20	.020″	±.0005″	± .0005″	ANSI	1.75″	green
2011114	B3W	.050″	.001″	0-10-0	.020″	±.001″	± .001″	ANSI	1.75″	green
2011115	B3W-RC	.050″	.001″	0-20	.020″	±.001″	± .001″	ANSI	1.75″	green
2011118	B5M	.075″	.0005″	0-15-0	.030″	±.0005″	± .0005″	ANSI	1.75″	green
2011119	B5M-RC	.075″	.0005″	0-30	.030″	±.0005″	± .0005″	ANSI	1.75″	green
2011123	B6K	.100″	.0005″	0-20-0	.040″	±.0005″	± .0005″	ANSI	1.75″	green
2011124	B6K-RC	.100″	.0005″	0-40	.040″	±.0005″	± .0005″	ANSI	1.75″	green
2011128	B6Q	.100″	.001″	0-20-0	.040″	±.001″	± .001″	ANSI	1.75″	green
2011129	B6Q-RC	.100″	.001″	0-40	.040″	±.001″	± .001″	ANSI	1.75″	green
2011133	B7I	.125″	.0005″	0-25-0	.050″	±.0005″	± .0005″	ANSI	1.75″	green
2011134	B7I-RC	.125″	.0005″	0-50	.050″	±.0005″	± .0005″	ANSI	1.75″	green
2011137	B7O	.125″	.001″	0-25-0	.050″	±.001″	± .001″	ANSI	1.75″	green
2011138	B7O-RC	.125″	.001″	0-50	.050″	±.001″	± .001″	ANSI	1.75″	green
2011141	B8I	.250″	.001″	0-50-0	.100″	±.001″	± .001″	ANSI	1.75″	green
2011142	B8I-RC	.250″	.001″	0-100	.100″	±.001″	± .001″	ANSI	1.75″	green

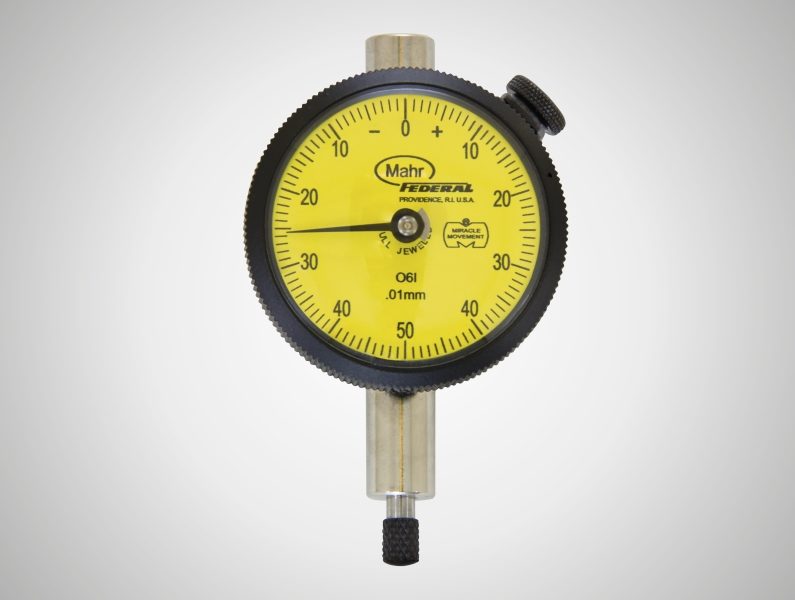

MARCATOR O6I-RC DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pull back spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250″ long contact
Optional Dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise (Order by part number and specify dial style desired)
For other dial styles or special requirements – call Mahr

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Standard	Scale diameter	Dial color
2011765	O1I	0.5 mm	0.002 mm	0-10-0	0.2 mm	ANSI	45 mm	yellow
2011767	O1I-RC	0.5 mm	0.002 mm	0-20	0.2 mm	ANSI	45 mm	yellow
2011770	O3I	1.25 mm	0.005 mm	0-25-0	0.5 mm	ANSI	45 mm	yellow
2011772	O3I-RC	1.25 mm	0.005 mm	0-50	0.5 mm	ANSI	45 mm	yellow
2011775	O6I	2.5 mm	0.01 mm	0-50-0	1 mm	ANSI	45 mm	yellow
2011776	O6I-RC	2.5 mm	0.01 mm	0-100	1 mm	ANSI	45 mm	yellow
2011779	O8I	6.25 mm	0.025 mm	0-125-0	2.5 mm	ANSI	45 mm	yellow
2011780	O8I-RC	6.25 mm	0.025 mm	0-250	2.5 mm	ANSI	45 mm	yellow
