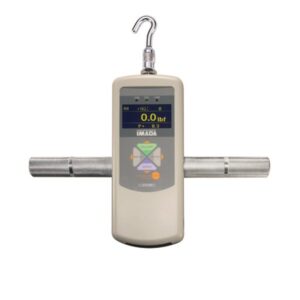

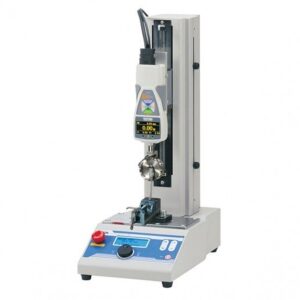

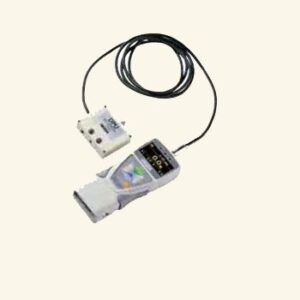

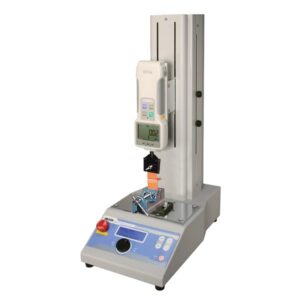

Description: Push and pull test Units: N, gf, kgf, ozf, lbf 500 memories Automatic power off Metal case LCD display with backlight The display flips over when the bottom faces up Overload alarm Specification: Code ISF-1DF10 ISF-1DF50 ISF-1DF100 ISF-1DF500 ISF-1DF1000 Load capacity (N) 10 50 100 500 1000 Resolution (N) 0.01 0.01 0.1 0.1   […]

Description: Push and pull test Peak (max.) and tracking mode Units: mN, N, gf, kgf, ozf, lbf, MPa (only for type B) Tolerance testing 1000 memories Automatic power off Metal case, touch buttons LCD display with backlight The display flips over when the bottom faces up Overload alarm Specification: Code ISF-DF 5A ISF-DF 10A ISF-DF […]

Description: Can change probes Dual-coil probe for high accuracy Universal testing angle, no need to set impact direction Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM) Dual value display, shows both Leeb and converted hardness Large LCD display with backlight Can choose […]

Description: Metal housing HD TFT 320×320 display Impact device D Accuracy: ±4HLD(when HLD=800) Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM) Four display modes Automatic direction correction Low and high limits with judgement Automatic power off, automatic calculation of statistics Dual value […]

Description: Impact device D Universal testing angle, no need to set impact direction Dual-coil probe, high accuracy Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB), Shore (HS) and tensile strength (SGM) Dual value display, shows both Leeb and converted hardness High contrast digital LCD display Can choose large […]

Specification: Hardness scale HRA, HRB, HRC, HRD, HRF, HRG Preliminary test force 98N (10kg) Test force 588N (60kg), 980N (100kg), 1471N (150kg) Display analogue Stage elevation manual Load control manual Min. reading 0.5HR Max. workpiece height  170mm Max. workpiece depth 135mm (from the center of indenter) Dimension 466x238x630mm Weight 70kg Standard Delivery: Main unit 1 […]

Description: Accumulate and record the number of mechanical movements Rotate back to zero Specification: Code Number of digits Range 7600-6 6 0-999999

Description: Quickly measure the concentration of coolant Refer to the refraction factor of coolant, for example: the refraction factor of grinding emulsion is 2.1, the reading value is 6%, so the actual concentration is (2.1×6%)=12.6% Specification: Measuring range 0-32% Graduation 0.2% Dimension 27x40x160mm Weight 175g

Description: Quickly measure the concentration of coolant Two measurement modes: single measurement and automatic average multiple measurement Two units: brix and refractive index Refer to the refraction factor of coolant, for example: the refraction factor of grinding emulsion is 2.1, the reading value is 6%, so the actual concentration is (2.1×6%)=12.6% Automatic power off Specification: […]

Description: Auto/manual ranging Maximum mode Data hold Display backlight Work light Low battery display Auto power off Safety rating: CAT Ill 600V Specification: Function Range Resolution  Accuracy DC Voltage 200mV/2V/20V/200V 0.1mV/1mV/10mV/0.1V ±(0.8%+2) 600V 1V ±(1.0%+2) AC Voltage 2V/20V/200V 1mV/10mV/0.1V ±(1.0%+5) 600V 1V ±(1.2°/0+5) AC Current 2A(50.5A) 1mA ±(3.5%+20) 2A 1mA ±(3.0%+10) 20A 10mA ±(3.0%+10) 200A […]

Description: Data hold Display backlight Low battery display Safety rating: CAT II 600V Specification: Function Range Resolution  Accuracy DC Voltage 200mV/2V/20V/200V 0.1mV/1mV/10mV/0.1V ±(0.5%+3) 600V 1V ±(0.8%+5) AC Voltage 200V/600V 0.1V/1V ±(1.2%.+10) DC Current 200pA/2mA 0.1pA/1pA ±(1.0°/0+3) 20mA 10pA ±(1.0°/0+5) 200mA 0.1mA ±(1.5%+5) 10A 10mA ±(3.0`)/0+10) Resistance 2000 0.10 ±(0.8%+5) 2k0/20k0/200k0 10/100/0.1k0 ±(0.8%+2) 2M0 1 k0 […]

Description: Measure visible light emitted by fluorescent lamp, metal halide lamp, high voltage sodium lamp or incandescent lamp Min/Max, data hold Two units: LUX and FC Reading in digital and analog Display backlight Auto power off Specification: Measuring range 0-200000LUX (0-20000FC) Resolution 0.1LUX (range<1000LUX), 1LUX (range?-1000LUX) 0.01FC (range<100FC), 0.1FC (range<1000FC), 1FC (range?-1000FC) Accuracy ±4% RED […]

Description: Measure humidity, ambient temperature, dew-point temperature and wet dulb temperature Min/Max/Average, data hold function Display backlight Auto power off Specification: Function Measurin ran e Resolution Accuracy Ambient temperature -20°C-60°C/-4°F–140°F 0.1°C/0.1°F ±1°012°F Wet dulb temperature -20°C-60°C/-4°F-140°F Dew-point temperature -10°C-50°C/14°F-122°F Humidity 0-99.9%RH 0.1 (YoRH ±5%RH Date storage 99 groups Auto power off 30 minutes Weight 190g […]

Description: Maximum and minimum modes Memory 100 measurement values Automatic power off Specification: Standard Delivery: Main unit 1 pc Reflection sticker 1 roll Battery (AAA) 4 pcs

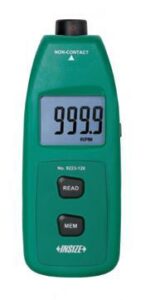

Description: Unit: RPM, m/min, m/sec, ft/min, ft/sec, in/min Maximum and minimum modes Memory 100 measurement values Automatic power off Specification: Measuring range 50-19999RPM Accuracy  ±(0.03%+2) RPM Resolution 0.01RPM (range 50-99.99RPM) 0.1 RPM (range 100-9999.9RPM) 1RPM (range 10000-19999RPM) Power supply 4 xAAA batteries Dimension 183x60x27mm Weight 122g Standard Delivery: Main unit 1 pc Wheel with 0.1m […]

Description: Measure velocity, flow, temperature and relative humidity Velocity unit m/s, km/h,mil/h, ft/m, ft/s, knots Flow unit CMS (cubic meter per second), CMM (cubic meter per minute), CFM (cubic feet per minute) Temperature type: ambient, dew point, wet bulb Maximum and minimum modes Automatic power off Specification: Standard Delivery Main unit 1 pc USB cable […]

Description: Automatically select best range: 30-80dB, 40-90dB, 50-100dB, 60-110dB, 70-120dB, 80-130dB Over range indicator Real time, average, maximum modes Memory 16000 measurement values AC signal output: 0.707 Vrms at FS, impedance approx. 6000 DC signal output: 10mV/dB, impedance approx.1000 Automatic power off Standard Delivery Main unit 1  pc RS232 Cable and software 1 pc Output […]

Description: Suitable for wood, smooth cement, hard gypsum, mixed mortar, brick, etc. Measure moisture, temperature and relative humidity Temperature type: ambient, dew point, wet bulb Maximum and minimum modes Automatic power off Main unit 1 pc Battery(AAA) 2 pcs Specification

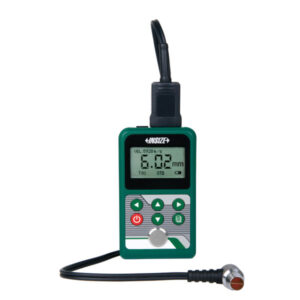

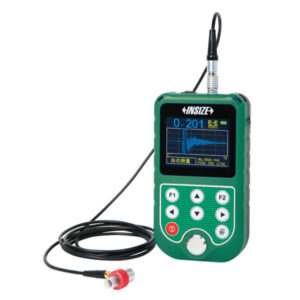

Description: Measure the thickness from one side of object, suitable for pipe, tank, etc. Applicable material: metal, plastic, glass, nylon, resin, ceramic, ice Standard Delivery Main unit 1 pc Transducer 1 pc Couplant 1 bottle Battery(AAA) 2 pcs Specification

Description: Magnetic induction probe (FE) measures the thickness of non-magnetic coating on magnetic substrate Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel) Coating: zinc, copper, chrome, tin, plastic, powder, paint (not for nickel) Eddy current probe (NFE) measures the thickness of non-conductive coating on non-magnetic substrate Substrate: copper, aluminum, zinc, non-magnetic stainless […]

Description: IP54 dust/waterproof Resolution: 0.01 mm/0.0005″ Buttons: on/off, zero, mm/inch, ABS/REL Automatic power off after 10 minutes of no operation, move the digital unit or press the on/off button to power on Automatic power off after 72 hours of no operation, move digital unit cannot power on, press the on/off button to power on Battery […]

Description: IP67 dust/waterproof Resolution: 0.01mm/0.0005″ Large display Button function: zero, on/off, mmAnch Battery CR2032, automatic power off Meet DIN862 Made of stainless steel Code Range Accuracy Thumb roller Type L a b d 1126-150 • 0-150mm/0-6″ ±0.03mm with A 234 20 15 40 1126-200 • 0-200mm/0-8″ ±0.03mm with A 286 24 19 50 1126-300 0-300mm/0-12″ […]

Description: Built-in wireless data transfer module, Zigbee signal Transfer distance is 6 meter Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch, data transmission Automatic power off, move the digital unit to turn on power Battery CR203 Made of stainless steel Optional accessory: receiver (code 7315-2, 7315-3) Code Range Accuracy L a b c d 1113-150 0-150mm/0-6″ ±0.03mm […]

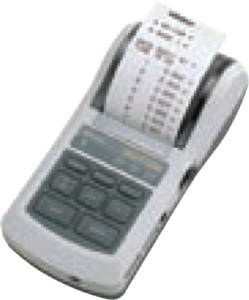

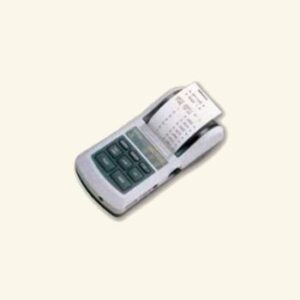

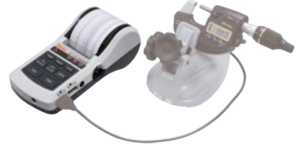

Mini-Printer Equipped with Data Logging Function SERIES 264 — Digimatic Mini-Processor DP-1VA LOGGER In addition to the conventional (DP-1VR) printing and statistical calculation functions, data logger and USB output functions are added and enhanced! This is a palm-sized printer used to print measurement data from Digimatic gages or to perform statistical analysis. The versatile DP-1VA […]

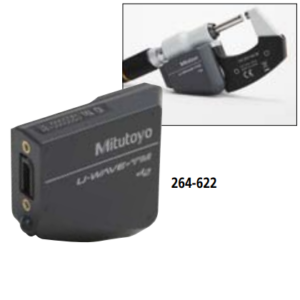

Data from tools with Digimatic output function can be sent to a PC via wireless communication. With functions and performance inherited from U-WAVE-T, the compact and thinner design provides better fitting to an instrument and improved operability, which enables further improvement of efficiency. The data interface function of the U-WAVE-R standard accessory software enables data […]

USB Keyboard Signal Conversion Type IT-016U The IT-016U, a popular USB input tool that enables easy data recording. Allows you to perform inspection work more efficiently. The IT-016U is equipped with a connector socket for a push-button or switch-foot operation. Functional improvements include :- A bigger, easy-to-press data switch. Size increased from ø4 mm to […]

Common optional software IT-016U/USB-ITN and U-WAVE Upgraded USB-ITPAK now supports U-WAVE, a wireless communication system. Both wired connection (IT-016U/USB-ITN) and wireless system (U-WAVE) are supported. New functions of USB-ITPAK V2.1 Supports the U-WAVE wireless communication system Timer input function Measurement date/time display Others: Compatible with Windows 8, 64-bit OS, and Russian included in the operating […]

Measurement Data Network System MeasurLink MeasurLink is a data management modular software system that enables collecting data from a wide range of Mitutoyo measuring tools and systems including Coordinate Measuring Machines. Measurement data storage can be centralized by implementing a network system using a company LAN. Quality information such as checking, monitoring, analysis of the […]

Measuring Data Management Software make measurement program of inspection computers and receive data from inspection computer and make statistics.

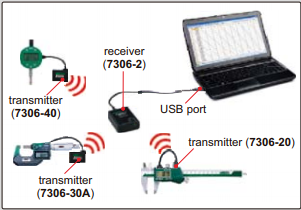

Wireless data transfer system with Single Collection and Multi Collection with All Data are displayed in the same column. Each measuring tool can be coded.

Data Output Cables can be transmitted as keyboard signal to Excel, Word, txt. and suitable for any Software which can receive keyboard signal.

  Grade AA, A and B are manufactured and inspected under the JIS B 7510 standard. Grade AA has ±0.2 scale all range accuracy in the main bubble Grade AA and Grade A have an insulating material which prevents heat transfering. Grade AA and Grade A have a bubble chamber in which the length of […]

Grade AA, A and B are manufactured and inspected under the JIS B 7510 standard. Grade AA has ±0.2 scale all range accuracy in the main bubble. These three types have less than 3µm accuracy in flatness between base and side. ( 0.02mm/m type ) Squareness between base and both side is 0.015mm/m. (0.02mm/m for […]

DG Holder – Noga DG61003 New Fine adjustment on Top with universal swivel clamp. Unique central locking mechanism with Noga designed spring loaded bearing.Noga DG61003 Dial gauge holder is 3 dimensional. Most powerful on/off magnetic base. Instant fixation in any position. Fast and easy to set up gauges into required position. Black finished Arms. Clamp […]

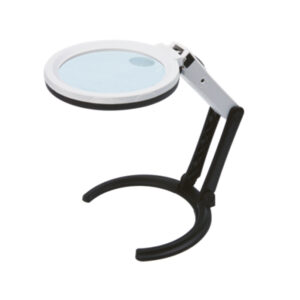

Folding Magnifier Glass Lens Code Magnification Lens diameter (ØD) 7511-8 10X Ø21mm Folding Magnifier with illumination Glass Lens Powered by 3xLR927 batteries (included) Code Magnification Lens diameter (ØD) 7515-10 10X Ø21mm Three ways Magnifier with illumination Resin lens Powered by 2xAA batteries (included) or power adapter (110~240V, 50~60Hz) Code Magnification Lens diameter (ØD) Lens diameter (ØD) […]

Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off,  move the digital unit to turn on power Meet DIN862 battery CR2032 Data output Made of stainless steel Optional accessory: data output cable (code 7306-20, 7302-SPC5A/SPC5B,7305-SPC2A2) Code Range Accuracy L d 1144-150A 0-150mm/0-6″ ±0.03mm 233 100 1144-200A 0-200mm/0-8″ ±0.03mm 283 100 1144-300A 0-300mm/0-12″ ±0.03mm 383 150

Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch Automatic power off,  move the digital unit to turn on power battery CR2032 Data output Made of stainless steel Optional accessory: data output cable (code 7306-20, 7302-SPC5A/SPC5B,7305-SPC2A2) Code Range Accuracy L d 1142-150A 0-150mm/0-6″ ±0.03mm 230 100 1142-200A 0-200mm/0-8″ ±0.03mm 280 100 1142-300A 0-300mm/0-12″ ±0.04mm 380 150

These stand alone digital units with full digital displays provide end users with quick, cost-effective checks and easy gateways into a PLC.   Available to both end users and automation OEMs, the new units verify key dimensions to support quality control in electronic, semiconductor, automotive and other manufacturing applications. Users can quickly set up the […]

BG – Block Gauges Spring ± 1, ± 2.5, ± 5 mm measuring ranges Accuracy better than 1 um Up to 0.25 µm repeatability IP65 sealing Spring or Pneumatic Actuation Multiple tool holder and tip options Solartron’s Block Gauges makes precision measurements of bores and cavities a simple and reliable process. More generally, the use […]

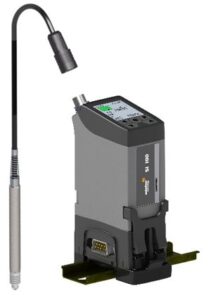

Orbit® Digital Measurement Network Ultra flexible network for Gauging and Linear Measurement. Wide range of Solartron Sensors Interface to 3rd Party sensors Contact and Non Contact Measurements High speed measurements Interfaces to Excel® Orbit® Library – based on Microsoft .NET Framework. Windows® 10, 8.1, 7 and XP in both 64 bit and 32 bit Conventional […]

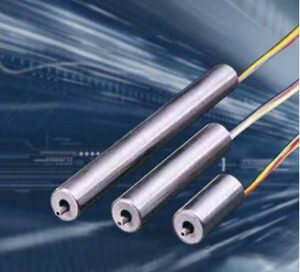

Miniature Displacement Short body length Rugged Construction Good Performance SM sensors cover two standard types in two measurement ranges ±1mm and ±3mm. They are designed for measuring displacement in applications where infinite resolution and precise repeatability is required in a very small size.   MD Series 8 mm diameter body Rugged Construction Light weight core […]

Displacement Gauging Probes – Optimum Series Linearity error better than 0.25% FSO Small body diameter 9.52 mm IP65 sealing Excellent measurement range to body length ratio Large radial bore clearance Rugged construction LVDT output The Optimum series of LVDT sensors is an ideal choice for process control and research applications. The free core variants are […]

S Series Linearity better than 0.2% 19 mm diameter stainless steel body IP65 and IP67 options Excellent measuring range to body length ratio Integral electronics: 4-20mA or voltage output LVDT output The S series displacement sensor is the culminationation of many years experience gained from a history of excellent displacement sensors  coupled with attention to […]

Standard Inductive Pencil (Gauging) Probes Contact gauge probes often provide the most cost effective solution for a wide range of measuring and positioning applications. In a conventional pencil probe the tip is pushed out using an internal spring. When installed in a fixture it is frequently required to design a mechanism to bring the probe […]

Tools Sets   Blades BLADES order no.   Range (mm) Angle (degrees) package weight (g) package quantity C12 BC1211   1-12 90 24 1 C20 BC2011   3-20 90 28 1 C20TiN BC2012   3-20 90 25 1 C30 BC3011   3-30 90 53 1 EX28 EX3001   8-28 90 17 1   Handle Holders […]

L C : 0.01mm Accuracy As per BGIPL standard Split Ball type Design Supplied with 4 interchangeable Measuring heads. (4‐4.6 ,4.5‐5.1,5‐5.6,5.5‐6.1mm ) TYPE READING RANGE K439 0.01 mm 4‐6 mm

L C : 0.01mm Accuracy As per BGIPL standard. 2 point type Design Supplied with 9 interchangeable anvils (extension)  in step of 0.5 mm from 6‐10 mm TYPE READING RANGE K539 0.01 mm 6‐10 mm

Specifications: Column Pneumatic Type Standard/Fanuc (Column transmit data (reading) to Fanuc controller O-i / Power Mate / 16 / 18 Series) Input Channels 1 Air Cut-Off Without Air Cut-Off / With Air Cut –Off Available (Air gets ON when Plug is placed in the Job else Air will remain OFF). Resolution  0.1μm/ 0.5μm/ 1μm/ 5μm […]

Specifications: Input Channels 2 Resolution 0.1, 0.5, 1, 5 µm Units mm / Inch Display 6 digit 7 segment Measurement Modes Curr , Max , Min , Diff Functions A, B , A+B, A-B Indications Reject, OK , Rework Calibration Single/Double calibration Scaling Auto / Manual Communication port RS-232. Wireless modules-optional Footswitch Available Output 1 CO […]

Specifications: Input Channels 1 Resolution 0.1, 0.5, 1, 5 µm Units mm / Inch Display 6 digit 7 segment Measurement Modes Curr , Max , Min , Diff Functions A Indications Reject, OK , Rework Calibration Single/Double Scaling Auto / Manual Communication port RS-232. Wireless modules-optional Footswitch Available Output 1 CO relay contact Measuring Ranges 0.1um […]

Specifications: Input Channels 2 Resolution 5µm/ 1µm/ 0.5µm/ 0.1µm Units mm , inch Measurement Modes Current, Min, Max, Differential Functions A, B, A+B, A-B Indications Reject, Ok, Rework Calibration Single/Double Display Tricolour 2 Line 7 Digit seven segment display Communication port RS-232 Outputs 6 open collector outputs Footswitch interface Available

  Specifications: Input Channels 1 Resolution 5µm/ 1µm/ 0.5µm/ 0.1µm Units mm , inch Measurement Modes Current, Min, Max, Differential Functions A PUSH/PULL Indications Reject, Ok, Rework Calibration Single/Double Display Tricolour 1 Line 7 Digit seven segment display Communication port RS-232 Outputs 3 open collector outputs Footswitch interface Available

Rapid offers special knurling tools & holders. As per customer request and in consultation with our technical team, Rapid manufactures tools which suites the specific need of customer application. Individual applications call for Special Customised tools.

RAPID TOOL SERIES  S201 MACHINE TYPE: Conventional And CNC Lathe, Automatic Short Turning Lathe SUITABLE METHOD:  Plunge Knurling FEATURES: Form knurling without swarf removal Integrated center height. Suitable for knurling on face Accomodate knurl from Either Left or Right Directions. Set Screws in Shank for correction of clearance angle POSSIBLE KNURLING PROFILE:  TOOL CODING SYSTEM:

RAPID TOOL SERIES  S201 MACHINE TYPE: Troub,Mini Lathe, Sliding head, Autolathe, lathe, CNC machine SUITABLE METHOD: Plunge knurling, Feed knurling FEATURES: Form knurling without swart removal Minimises lateral pressure on workpiece Less strain on machine and workpiece Suitable for machining small and delicate parts Form knurling of thin-walled work pieces POSSIBLE KNURLING PROFILE: TOOL CODING SYSTEM

RAPID TOOL SERIES  C101 MACHINE TYPE: CNC machine,Troub,Sliding head, Lathe, Autolathe FEATURES: Cut knurling with material removal Integrated Center height Builtin lock position of 30° for better accuracy Minimal vibration, high quality visual profiles, close tolerances Reduction in Forces on Machine bearings Reproducible Processes due to fixed Head TOOL CODING SYSTEM:  TOOL SERIES  C102 MACHINE TYPE:  […]

RAPID TOOL SERIES F202 MACHINE TYPE:  Troub,Sliding head, Lathe, Autolathe SUIT ABLE METHOD: Plunge knurling, Feed knurling FEATURES:  Form knurling without swarf removal Heavyduty holder for maximum life Reducing time for repositioning of knurling head incorporated carbide pin with ease of changing Adjustable rubber padding for self centering Perfect for Feed Knurling POSSIBLE KNURLING PROFILE:  […]

TOOL SERIES  F101  MACHINE  TYPE: Traub, Sliding  Head, Lathe, Autolathe SUITABLE  METHOD: Plunge knurling,  Feed knurling FEATURES:  Suitable for form knurling without swarf removal All knurling patterns can be formed Precise Carbide pin with ease of changing accommodate RAPID™  knurls for better accuracy POSSIBLE  KNURLING  PROFILE: PLUNGE KNURLING- FEED KNURLING- TOOL NO. A(mm) B(mm) L(mm) […]

Rapid Form Knurls Knurl Profile Knurl Size: 10x04x04, 15x04x04, 10x06x04, 15x06x04, 20x08x06, 20x10x06, 20x12x06*, 20x15x06* Knurl Pitch: 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.5, 1.6, 1.8, 2.0, 2.5 Rapid Knurls Features:  HSS knurls with Bore and Face Ground Milled sharp Edge Profile better Form Profile Highest Productivity on Ferrous & non Ferrous material […]

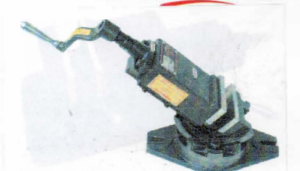

Unique Hydraulic Pressure Vice Rigid material vise body of ductile iron Clamping force 3500 KGF. Accuracy in squareness within 0.02/100mm Hydraulic cylinder of alloy steel hardened, ground & lapped Jaws made of alloy steel properly hardened Fixed jaws is provided with vertical & horizontal ‘v’ grooves to hold the round job firmly Supplied with stopper […]

Product Description Accuracy ± 0.005 Outer Diameter 20mm Red Lamp lights up when touched Product Features The LICO Edge Finder, is typically used to measure and set tool at the center and X, Y axis offsets, When contacted by Workpiece it works with a red light indicator. The Edge Finder enables fast and accurate offset of tools […]

Product Description – Electronic Z Axis Tool Setter Accuracy ± 0.005 Height up to 50mm Magnetic base (Optional) Red lamp light up when touched Product Features The LICO Tool Setter is typically used to measure and set tool lengths and Z-axis work offsets, When contacted by a tool it works with a red light indicator. The tool setter […]

13 roughness parameters With probe position indicator Connected with printer via bluetooth (code ISR-C100-PRINTER) Can display roughness values, profile, and curve Memory of maximum 100 results Automatic power off Download PDF

Unit: μm, μin Automatic power off Download PDF

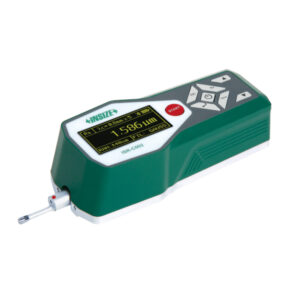

21 roughness parameters Connected with printer via bluetooth Display roughness values, profile and curve Memory of maximum 100 results Automatic power off   Download PDF

Roughness tester can be operated by mobile phone (only android system) or computer Data can be output to Excel by connecting with computer via bluetooth or USB cable Support bluetooth printer 22 roughness parameters Meet ISO, DIN, ANSI, JIS standards Display roughness values, profile and curve Memory of maximum 100 data and waveform Built-in lithium […]

Tools Blades Sets Handles

Blades Tools   Sets Handles Holders

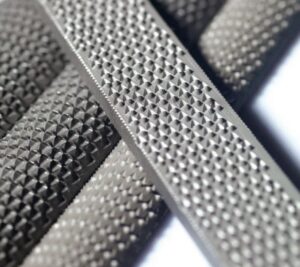

The files are of Swiss made blanks electroplated with ultra high concentration of precisely graded diamond particles. A must for any tool and die shop, extruders and repairs of hardened alloys and ceramics. Blades SHAPES Order no.   width x thickness (mm) Equaling DT1050 5.1 x 1.4 Triangular DT1051 3.9 Square DT1052   2.5 Half Round DT1053 […]

Micrometer with interchangeable Anvils NOTE: *External Micrometer above Range 300mm & 12inch, Supplied without Handle shell (Insulating Grip) Setting Standards – up to 300mm & 12inch – Both Ends Flat Face.  Above 300mm & 12inch – Both Ends Spherical   FEATURES Interchangeable anvils Spindle made from stainless steel for rust prevention (08.0 mm, pitch O.Smm […]

Micrometer with Add on Extension Anvil NOTE: Setting Standards – Both End Spherical The 500-1000mm micrometers are made with lightweight Aluminum Cast I-Section frame design which offers sufficient strength, resistance to bending moment and are easy to use as compared to the pipe construction frame. In I-Section more than 90% of the bending moment is resisted due to I-shape. I-Section design has higher moment of resistance because the area of flanges is away from the neutral axis. At the same time the heat transfer due to hand […]

Separated Button

Resolution: 0.01mm/0.0005″ Buttons: on/off, zero, mm/inch, preset +, preset -, hold Automatic power off, move the digit unit to turn on power Carbide tipped scriber made of stainless steel Battery CR2032 Data output Supplied with dust cover Optional accessory: data output cable (code 7306-20,7302-SPC5A/SPC5B, 7305-SPC2A),dial test indicator holder (code 6293-6),clamp for protractors (code 2372-CLAMP) Code Range Accuracy […]

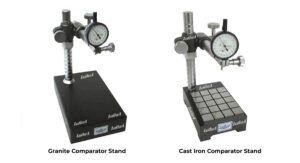

Granite Comparator Stand Granite Comparator Stand are made of black granite and are precision lapped to grade – 0 accuracy. Heavy duty vertical post and adjustable gauging bracket for maximum stability and durability. Specifications Model No. Reference Surface mm Measuring Height mm Throat Depth mm Post Diameter mm Gaging Bracket L-1 150 X 100 100 65 25 Plain L-2 150 […]

Rigid STAINLESS STEEL Construction Dual Scale (MM & INCH) Main scale Zero adjustment range 10 mm approx. & vernier scale fine adjustment range 8 mm approx. L C: 0.02mm/0.001” Accuracy As per DIN 862 Standard. Magnifying glass for Better readability TYPE READING RANGE   VH 300   0.02 mm/0.001”   0-300 mm/0 -12” VH 600 […]

Rigid STAINLESS STEEL Construction MM/INCH conversion LC: 0.01mm/0.0005 IN Ingress Protection: IP 54 Large Liquid Crystal Display for good visibility. Accuracy As per DIN 862 STANDARD Powerful & Original lithium battery. type CR2032 Working temp. 5–40 °C TYPE READING RANGE   DDC 10   0.01 mm/0.0005”   0‐150 mm/0 ‐6” DDC 20 0.01 mm/0.0005” 0‐200mm/0 […]

Rigid STAINLESS STEEL Construction MM/INCH conversion LC : 0.01mm/0.0005 IN Ingress Protection : IP 54 Large Liquid Crystal Display for good visibility. Accuracy As per DIN 862 STANDARD Powerful & Original lithium battery. type CR2032 Working temp.5–40°C TYPE READING RANGE   DDC 10   0.01 mm/0.0005”   0‐150 mm/0 ‐6” DDC 20 0.01 mm/0.0005” 0‐200mm/0 […]

Mobile and stationary measuring instrument. Roughness and waviness measurements. Traversing lengths up to 26 mm. Over 50 R, W and P surface parameters. Automatic choice of cut-off and traversing length in accordance with international standards. Dynamic calibration function. Cable and the Bluetooth connection between the drive unit and evaluation instrument (4 m). Magnetic probe holder […]

Bright, illuminated color display Automatic selection of filter and traversing length conforming to standards Integrated thermal graphics printer with high print quality Log printed by pressing a button Data transfer of results and profiles via USB interface to your PC Evaluation of most common parameters as well as characteristic curves, parameter lists (e.g. material ratio […]

First portable roughness measuring unit with the option of wireless (Bluetooth) connection between the evaluation unit and drive unit Easy to use, with high-resolution color display and menu-driven user guidance Integrated standard in the drive unit Large measuring range – 350 µm Automatic profile detection and corresponding selection of filter and traversing length conforming to […]

“sMAHRtSurf” – Simple, smart and mobile Compact roughness measuring instrument for mobile use Simple and intuitive to use: As easy to use as a smartphone Large, illuminated 4.3″ TFT touch display Adjustable display Start button also serves as the Home button for direct access to the start screen Data backup as TXT, X3P or PDF […]

Durable cast aluminum housing to provide years of accurate and reliable surface finish gaging Can be used to measure any one of four, selectable, parameters: Ra, Ry, Rmax, Rz Review any of the parameters after the measurement is complete Selectable traverse length 1, 3 or 5 cut-offs of 0.8 mm/0.030“ Operates in any position – […]

Battery life up to 3 years Max. measuring speed 1,5 m/s (60”/s) MarConnect Data output: choose either    – USB    – OPTO RS232C    – Digimatic High contrast liquid crystal display with 12 mm sized digits Sturdy heavy-duty base, easy to handle Hardened and lapped contact surface which produce both a smooth and even […]

DIGIMAR 814 N HEIGHT MEASURING AND SCRIBING INSTRUMENT High accuracy The incremental inductive measuring system Measuring head with a ball bush guide Resistance-free measuring system Large, easy to read digital display Measuring and display unit is incorporated in the measuring head Data transmission via Opto RS232 C interface Digital preset Zero setting in any position […]

Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head A dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Temperature compensation with an integrated temperature sensor Probe constant remains after […]

Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head Dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Probe constant remains after the instrument is switched off Integrated rechargeable battery […]

DIGIMAR 817 CLM HEIGHT MEASURING INSTRUMENT Excellent accuracy and reliability due to the optical incremental measurement system with the double reader head Dynamic probing system enabling high repeatability Air bearings system for light and smooth movement Precise measuring head on stainless steel guideways Motorized measuring carriage simplifies measurement runs Probe constant remains after the instrument […]

The absolute zero feature is available , using this feature you can set an “origin point” at any where within the measuring range . Once an “origin point” is set the distance displaying between the origin and your position. Features Accuracy according to DIN 862. Made from stainless steel, the jaws are finely ground and […]

Absolute Digital Snap Micrometer can give quick measuring with the lever. It’s also used for precision measurement or mass-produced parts. Features No rotating spindle avoiding scratch parts Absolute origin IP65 protection level SPC data output Quick measuring with lever Higher accuracy higher reliability Longer battery life Product Sketch   Technical Specifications Code Range L.C. DSM […]

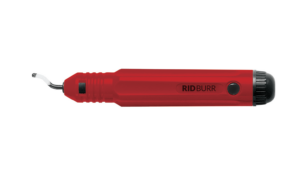

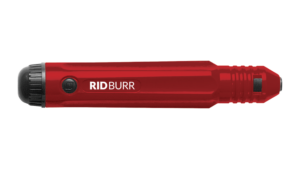

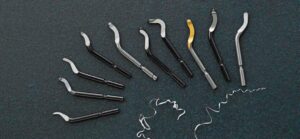

RB10 Blade Works best on Steel, Aluminum and Plastic. For right hand user. Made of HSS M2     RB20 Blade Works best on Brass and Cast iron. For left and right hand user. Made of HSS M2     RB30 Blade Removes internal and external burrs. For right hand user. Made of HSS M2   RB100 Blade Super hand […]

Description Great all round Deburring tool. Includes RB10, RB20, RB30, RB100, RB101 Blade. RBH 1000 Handle.   RB10 Blade Works best on Steel, Aluminum and Plastic. For right hand user. Made of HSS M2     RB20 Blade Works best on Brass and Cast iron. For left and right hand user. Made of HSS M2     RB30 Blade […]

Description Great all round Deburring tool. Includes RB10, RB20, RB30 Blade. RBH 1000 Handle. RB10 Blade Works best on Steel, Aluminum and Plastic. For right hand user. Made of HSS M2     RB20 Blade Works best on Brass and Cast iron. For left and right hand user. Made of HSS M2     RB30 Blade Removes internal and […]

Description Great all round Deburring tool. Includes RB10 Blade. RBH 1000 Handle.   RB10 Blade Works best on Steel, Aluminum and Plastic. For right hand user. Made of HSS M2

Holds all 3.2mm blades. Large storage space for space blades. Safety button for quick change of blades. RB10 Blade Works best on Steel, Aluminum and Plastic. For right hand user. Made of HSS M2     RB20 Blade Works best on Brass and Cast iron. For left and right hand user. Made of HSS M2     RB30 […]

Universal Gauge (extension compatible version) standard features: Range 30-250mm internal / 0-215mm external 15mm anvil travel Constant measuring pressure Digital or mechanical readout 150mm and 500mm extensions available. Can be screwed together in multiples (up to maximum 3m recommended) Measuring table and supports available for conversion to bench gauge for the measurement of small components […]

Irregular Spacing Available between 16-300mm diameter to measure between odd spaced lobes. Gun Barrel Head Measurement of smooth bore and rifled bore gun barrels. Major and minor diameters measured deep in to bores. Right Angled Adaptor Blind Bore Standard between 2-6mm and 12.5-300mm. Between 6-12.5mm on request. Slot Width (Large)Slot widths from 6-100mm.   Slot […]

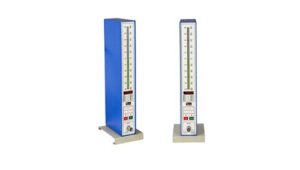

Operated by a pneumatic actuator powered by a 3 bar compressed air supply – either from a compressor or a workshop air-line. The measurement data is collected by a capacities probe fitted just behind, and in constant contact with the measuring head. This direct contact ensures high-quality transducer-type accuracy, even at great depths. Measurements are […]

2 Point Spherical Measurement of ovality in bore. Measurement of bores with irregularities. 3 Point Spherical Gives good repeatability even when out of line with bore centre. Available from 6-300mm diameter on digital systems.   Spherical Radius Can be supplied as a 2 point (for ovality) or 3 point contact. Available from 6-300mm.

Frames fitted with 1 x ball and 1 x pin.

2 and 3 point heads available. Anvils manufactured from tool steel.  Between pin, major and minor diameter heads available.  Diameters from 8-300mm diameter (5/16″-12″).

For sizes from 2-300mm diameter. Interchangeable with standard heads Suits Bowers XTD, XTH and Ultima Special forms, radius, ball contacts Depth stops available for quick location Annular grooves possible Grooves For Size from 2-300 diameter

To measure effective (functional) diameter, pitch diameter, major diameter, between M4 – 300mm. / No. 8 UN – 12″ diameter. Ball Screw Threads External Threads

The Bowers XT500 large diameter 3-point bore-gauge has been designed specifically for the measurement of internal diameters between 300 and 500mm. The newly designed constant-force digital readout ensures that the measuring pressure remains constant throughout the measurement whilst radiussed measuring anvils provide optimum centralisation in the part. Anvil sets are supplied in 25mm steps (300-325, […]

The new MicroGauge Two point bore gauge system has been designed specifically for the measurement of small bores between 1.0-10.0mm. Featuring a completely new digital readout and extremely compact overall dimensions, the MicroGauge is truly a pocket-sized instrument. Digital readout and measuring head together are about the same size and format as a ballpoint pen […]

Bowers’ XT3 Three Point Pistol Grip Digital Bore Gauge Holematic offers a new ergonomic design – including a larger and clearer LCD display – along with IP67 electronics protection, proximity output with built-in Bluetooth; allowing bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that […]

Bowers’ Bluetooth digital internal micrometers offer a new ergonomic design – including a larger and clearer LCD display – along with IP67 electronics protection, proximity output; allowing bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate […]

Bowers XT Analogue three Point Mechanical Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. […]

Miniature micrometer heads for ease of incorporating into machines. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch 148-132 0 – 13mm   0.01mm   ±2µm   9.5mm Plain   Spherical (SR4)   0.25mm 148-133 w/ clamp nut 148-322 0 – 6.5mm Plain 148-323 w/ clamp nut

Highly accurate 0.1mm pitch thread is only one-fifth of that used for a standard-pitch head (0.5mm). External dimensions are compatible with standard 0.5mm pitch heads. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch Special features 148-142     0 – 6.5mm     0.002mm   ±2µm   9.5mm Plain […]

Quick spindle feed of 1mm/rev. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch 152-101 0 – 15mm   0.01mm ±2µm   12mm   Plain   Flat (carbide tip)   1mm 152-102 0 – 25mm 152-103 0 – 50mm ±4µm

The spindle translates without rotation. Torsion-free feed reduces workpiece deformation and wear. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Spindle pitch Graduation features 153-101 0 – 15mm 0.01mm   ±3µm 9.5mm   Plain   Flat (carbide tip)   0.5mm Standard 153-201*   0 – 25mm   12mm 153-202* 0.001mm […]

DIMENSIONS

DIMENSIONS

Locking screw provides secure locking at any position of the spindle. Position of the locking screw is the same as the sleeve index line. DIMENSIONS SPECIFICATIONS Metric Order No. Range Graduation Accuracy Stem dia. Stem Spindle end Graduation features 148-220   0 – 6.5mm           0.01mm   ±5µm   6mm Plain […]

DIMENSIONS

DIMENSIONS

Larger spindle for heavy-duty applications (normally ø6.35mm). DIMENSIONS SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Special features 151-224           0 – 25mm           ±2µm             12mm Plain             Flat (carbide tip)   — […]

DIMENSIONS

Measuring range of 25mm. DIMENSIONS SPECIFICATIONS Metric Inch Order No. Range Accuracy Stem dia. Stem Spindle end Special features 150-208               0 – 1″               ±.0001″               .375″ Plain   Flat (carbide tip)     Standard 150-207 […]

DIMENSIONS

Carbide-tipped spindle provides high abrasion resistance. DIMENSIONS SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation features 149-132           0 – 15mm           ±2µm           9.5mm Plain   Flat (carbide tip)     Standard 149-131 W/ clamp nut 149-183 Plain* […]

DIMENSIONS

Measuring range of 13mm. The thimble can be set to zero at any position by loosening the setscrew. Stainless steel throughout: 148-513, 518, 511 DIMENSIONS   SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Special features 148-503           0 – 13mm           ±2µm   […]

DIMENSIONS

Attachment for interrupted surface measurement No.178-034 Best suited for measurement of the flat surface of a workpiece that has partial indentations and steps and that is hard to set the drive unit. Combination use with the magnet type specimen holder (Option: No.12AAA910) further improves the ease of operation. Attachment for measuring inside bores and holes […]

Detector Standard detectors Code No. Measuring force Stylus Remarks 178-296 0.75mN 2µmR /60˚ Dedicated to the standard/retractable drive unit 178–390 4 mN 5µmR /90˚ 178–387 0.75mN 2µmR /60˚ Dedicated to the transverse tracing drive unit 178–386 4 mN 5µmR /90˚ 178–391 4 mN 10µmR /90˚ Dedicated to the standard/ retractable drive unit *Tip radius /Tip angles Small hole detectors Code […]

SPECIFICATIONS *1: Calculation is available only when selecting the VDA, ANSI, or JIS 1982 standard. *2: Calculation is available only when selecting the ISO 1997 standard. *3: Calculation is available only when selecting the JIS 2001 standard. *4: Calculation is available only when selecting the ANSI standard. *5: Not available when selecting the JIS 1982 […]

*1: Calculation is available only when selecting the VDA, ANSI, or JIS 1982 standard. *2: Calculation is available only when selecting the ISO 1997 standard. *3: Calculation is available only when selecting the JIS 2001 standard. *4: Calculation is available only when selecting the ANSI standard. *5: Not available when selecting the JIS1982 standard *6: […]

Mitutoyo’s Magnetic Stands accept all dial indicators and dial test indicators (with stem ø6 or ø8) and clamp to iron or steel surfaces with a strong magnetic force. 7014-10, 7031, 7032 and 7033B have a dovetail groove. DIMENSIONS SPECIFICATIONS Order No. Description Applicable holding stem dia. Magnetic force Remarks 7010-10 Magnetic stand ø6mm, ø8mm Approx. […]

Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes. Wide (13.5 x 12mm/ 1.53 x 47”), flat carbide anvils. Anvil retracting stroke: 2mm/.080” Anvil positioning range: 25mm/ 1” Adjustment nut: adjusts the measuring range. Clamp: adjustment nut Flatness of measuring face: 1μm Stability of indication: 2μm or less (stability of […]

Dial caliper gages are inside diameter measurement tools, which have a broader range of applications including the measurement of hole diameter and internal measurement of special shapes (grooves). Internal measurement SPECIFICATIONS Metric Order No. Range Graduation Range of opening*1 Dial face Accuracy Measuring force 209-125 6 – 18mm 0.01mm 5.8 – 18.2mm 0-100-100 ±40µm 2.0N […]

Dial thickness gages can quickly measure the thickness of thin products such as paper and felt. Contact point and anvil are both made of ceramic: rust-free (547-401 is excluded.) Integrated molding of the bezel and crystal ensures protection against water and oil penetration via the front face. Standard Type High Accuracy Type Standard Type Lightweight […]

Styli (for Metric Models Only*) * Except for universal type dial test indicator (513-304G). Stylus length affects the scale factor of an indicator. The styli provided as standard give a scale factor of unity. ø0.5mm ball-point 190547 (L=14.7mm) 190549 (L=20.9mm) 190654 (L=22.3mm) 190656 (L=44.5mm) ø0.7mm ball-point 190548 (L=14.7mm) 190550 (L=20.9mm) 190653 (L=22.3mm) 190655 (L=44.5mm) ø1mm […]

Jeweled bearings assure higher sensitivity and accuracy. Pocket Type Dial Test Indicator can be mounted by clamping the stem or the body (except for 513-517WE and 513-517WT). Reversible measuring direction (Clutch type). Two holding bars are supplied. (Full sets only.) Fully adjustable bezel/dial face. Stylus is adjustable within 220°. Bezel is sealed with on O-ring […]

Universal application to all directions. (Not only the direction of the measuring point, but also the direction of measurement itself can be adjusted 360 degrees without moving the indicator.) SPECIFICATIONS DIMENSIONS Set Configuration: Metric Set Configuration: Inch Optional Accessories ––––––: Swivel clamps (See page F-63.) ––––––: Holding bars (See page F-63.) ––––––: Stems (See page F-63.) 102824: Stylus, […]

Specially designed for easy viewing of dial. The dial face obliquely faces upward, allowing users to read the graduations from the user’s side. It is convenient when probing on the side of a large workpiece and the workbench is high. Using the universal holder allows easy hole centering. The dial face always faces upward when […]

Designed to probe surfaces that cannot be reached with a normal dial gauge. Useful both for alignment and for measurement purposes. Mitutoyo’s proprietary new design permits smooth pointer operation. Strong frame provides excellent rigidity and durability. Non-magnetic pointer and contact point permit reliable operation even in magnetic environments. Clear and concise wide dial face allows […]

Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in situations where standard dial gauges are difficult to read. Model 1960T and 1961T, which uses Mitutoyo’s proprietary shock-proofing mechanism, has excellent durability and shock resistance. DIMENSIONS Order No. A B C E F G […]

Back plunger type dial gauges are suitable for mounting onto leveling machine tool tables or inspection jigs, and for use in small spaces where the graduations of standard dial gauges are difficult to see. Models 2960T, 2961T, 2990T-10 and 2991T-10, which use Mitutoyo’s proprietary shock-proofing mechanism, have excellent durability and shock resistance. Model 2990T-10 provides […]

Peak hold type Special dial Indicator gauge A mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value. * Clearance of peak hold: push the nut in the direction of the arrow indicated in the dimensional drawing below. DIMENSIONS SPECIFICATIONS Metric Order No. Graduation Range (range/rev) […]

Adjustable hand dial indicators The hand position can be adjusted independently of the position of the spindle by rotating the top knob. DIMENSIONS * Contact points, other than dedicated types, cannot be installed. * The shoulder on a contact point (standard accessory) acts as a stop to prevent spindle overrun that may otherwise damage the indicator. […]

Dial indicators with a large-diameter dial face for easy reading. Models with longer measuring ranges are also available. All types are supplied with limit markers and a bezel clamp as standard. Both the stem and the spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use. The bezel clamp and lifting lever (optional)*1 […]

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed” . One revolution type Back plunger dial gages are also […]

Compact dial indicators with bezel diameters of ø40mm for restricted-space applications in gaging jigs. SPECIFICATIONS Metric * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed. Inch * Completed products inspection is performed in the vertical position (contact point downward) and the stated accuracy is guaranteed. […]

Compact dial indicators with bezel diameters of ø31 or ø36mm for restricted-space applications in gaging jigs. DIMENSIONS Order No. A B C D E F G H I 1911T-10 15.5 42 31 12.9 19.2 15 11.5 30 5.9 1913T-10 15.5 39.5 31 12.9 19.2 15 9 30 5.9 1003T 18 40.3 36 13 15 9.5 […]

Long stroke dial indicators with a ø57mm outer frame. All the models are equipped with limit markers and a bezel clamp as standard. An O-ring is employed to ensure air-tightness between the outer frame and the crystal case to prevent water or oil penetration. Both the stem and the spindle are made of high-strength quench-hardened […]

Excellent water- and drip-proof characteristics (IP43). Smooth movement thanks to the improved design of bush and stem. Application of a hard coating on the surface of the crystal makes the gage scratch- and oil-resistant. Lightweight type (70g). DIMENSIONS * When installing an optional back (refer to page F-55 for details) please separately prepare 4 fixing […]

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed”. One revolution type Back plunger dial gages are also available. […]

Mitutoyo’s unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact. This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions. The dead zone in red indicates “accuracy not guaranteed”. DIMENSIONS Note 1: Dimensions of the inch (ANSI/AGD Type) dial […]

Waterproof type dial gages having a bezel with an outside diameter of 57mm. All types come with limit markers and a bezel clamp as standard. The bezel clamp can be attached to either the right or left side. These parts can be easily installed and removed without tools. The stem and spindle are made of […]

Standard 0.001mm and 0.005mm graduation dial indicators having a bezel with an outside diameter of ø57mm. All types come with limit markers and a bezel clamp. The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. Secure adhesion […]

Standard 0.01mm graduation dial gages having a bezel with an outside diameter of 57mm. All types come with limit markers and a bezel clamp as standard. The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools. Secure adhesion […]

GO/±NG judgment function: If a judgment result shows an out of tolerance condition, the display backlighting changes from green to red. An analog bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable. With Mitutoyo’s ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not […]

This new-generation digital indicator offers the excellent accuracy and functionality expected from the top class of indicator. Take advantage of its high accuracy backed up by 0.5μm/.00002” resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display. Functionality meets the needs of diverse […]

General purpose indicator with the measuring range of 25.4mm/ 1”. Cost-effective and user-friendly type which is equipped with the basic functions necessary. The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors.  Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18. […]

Enables a tolerance judgment to be output to external equipment for a measurement result against user-defined limits. Solid-state switching provides high reliability by avoiding metallic switch contacts. Output is enabled by directly connecting to external devices (sequencers, etc., for which a logical invert is available if required). The measurement and judgment results are displayed on the LCD. The […]

Calculation function operates on spindle displacement. Entering the appropriate formula factors for a fixture dedicated to the application enables direct measurement readout, thereby eliminating any need for the conversion tables previously needed for those applications where fixtures are typically used. Peak-Value Run-out/MAX/MIN Hold enables GO/±NG judgement for peak value. Simple operation of many functions with five buttons and […]

Dedicated to inside measurement with minimum-value Hold and tolerance judgement functions. Measurement data memory function (9 measurement results can be stored) Simple operation of many functions with five buttons and status icons. Wide LCD and new analog bar graph are now standard on all models. Sampling is performed fifty times per second for accurate detection of maximum and […]

Run-out/MAX/MIN Hold function enables GO/±NG judgement for peak or difference values. Simple operation of many functions with five buttons and status icons. Wide LCD and new analog bar graph are now standard on all models. Sampling is performed fifty times per second for accurate detection of maximum and minimum values. SPECIFICATIONS Metric Order No.(w/lug, flat-back) Range Resolution Accuracy*1 Hysteresis*1 […]

Our unique ABS sensor restores the last origin position automatically when the indicator is turned on. The chance of overspeed errors has been eliminated thanks to the ABS sensor. Rated to IP66: can be used satisfactorily even in adverse environments where the indicator is subject to splashing by cutting fluid or coolant. Slim body design […]

The ABS (absolute) sensor restores the last origin position automatically when the indicator is turned on. Note: Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page F-18. Thanks to Mitutoyo’s ABSOLUTE Linear Encoder, reliability has been increased due to elimination of over-speed errors. Tolerance-judging measurement is available by setting upper and lower […]

Solar powered An environmentally friendly measuring instrument that does not require batteries, eliminating the hassle and cost of battery replacement. Can operate under minimum light conditions of 40 lux—lower than the level in a warehouse. Built-in recharger The large-capacity built-in reservoir capacitor allows you to use the indicator for long periods of time under light conditions below the […]

High-precision longitudinal and transverse vials make it possible to check or level surfaces. SPECIFICATIONS Order No. Sensitivity Dimensions (W x D x H) 960-603 0.02mm/m 200 x 44 x 38.2mm 960-703 0.02mm/m 200 x 44 x 200mm Technical Data Accuracy of graduations: ±0.7 DIV (960-603), ±0.3 DIV (960-703)

Data output function makes it easy to gather statistical data. Can be attached to height gages using a gage holder (950750, metric) Setting preset value. Removable blade. SPECIFICATIONS Order No. Blade length Remarks (standard accessory) 187-501 150mm Height gage holder (950750) 187-502 300mm Height gage holder (950750) 187-551 6” Height gage holder (950749) 187-552 12” Height gage […]

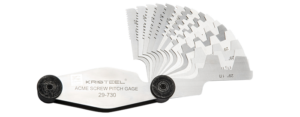

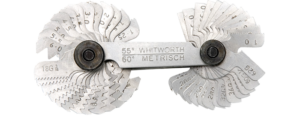

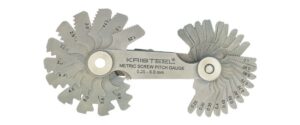

Thread pitch is stamped on each gage. Metric, Unified, and Whitworth screw pitch gages.   SPECIFICATIONS Metric Screw Pitch Gages Order No. Range Composition of leaves 188-130 0.35 – 6mm 22 leaves: 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm and 60° angle […]

Radius gages size is stamped on each gage leaf. Each leaf comprises an internal and an external radius gage of the same size. With locking clamp. SPECIFICATIONS Metric Order No. Range Composition of leaves Remarks 186-110 0.4 – 6mm 18 leaves: 0.4, 0.8, 1, 1.2, 1.5, 1.6mm, 1.75 – 3mm by 0.25mm, 3.5 – 6mm by […]

Metric thickness gages are available with tapered leaves. Each leaf is marked with its Each leaf is detachable if SPECIFICATIONS Metric Order No. Range Composition of leaves Remarks 184-313S 0.05 – 1mm 28 leaves: 0.05 – 0.15mm by 0.01mm, 0.2 – 1mm by 0.05mm — 184-303S 28 leaves: 0.05 – 0.15mm by 0.01mm, 0.2 – […]

Clear graduations on satin-chrome finish. Stainless tempered. SPECIFICATIONS Metric Wide Rigid Rules Order No. Graduations Range Width 182-111   1mm, 0.5mm (on both faces) 150mm 19mm 182-131 300mm 25mm 182-151 450mm 30mm 182-171 600mm 30mm Metric Fully-Flexible Rules Order No. Graduations Range Width 182-211   1mm, 0.5mm (on both faces) 150mm 12mm 182-231 300mm 12mm […]

Specially designed for standard size gauge blocks over 125mm which have two coupling holes on the body: coupling of two long gauge blocks and attachment of jaws is possible. These accessories can also be used for CERA blocks. SPECIFICATIONS Set Order No. Individual Item Order No. Item Description Quantity Supplied         516-605 […]

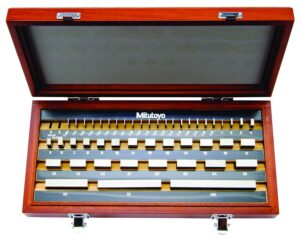

Mitutoyo Rectangular Gauge Block provides a wide selection of boxed sets of gauge blocks to meet the various needs of industry. Selecting the best set, or sets, to acquire usually depends on the accuracy required by the target applications, the level of convenience desired (larger sets offer more combination possibilities) and the environmental conditions in which they […]

Easy-to-read dial effectively prevents misreading. Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Order No. Range Graduation Stroke Accuracy*4 Measuring force Base Contact point*1 Extension rod*2 Indicator*3 W T flatness 547-211   0 – 200mm 0.01mm   12.7mm ±20μm   1.5N […]

Optimal for hole, narrow groove and step measurement. Metric Order No. Range Graduation Accuracy Stroke Measuring force   Contact point*1 Extension rod*2 Indicator*3 (dial indicator) W T Flatness Mounting position of a dial indicator 7210 0 – 10mm               0.01mm   ±15μm   10mm   1.4N 40mm     16mm […]

• Attaches to the base (reference face) plate of a depth gage to extend its span. • Refer to the illustrations at left for attachment details. • Extension base is three times the length of the base for models of less than 300mm range. • These extension bases cannot be attached to 0-600mm, 0-1000mm, 0-24” […]

The end of the main beam is hook-shaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurement. Coolant proof models achieve IP67 protection level. Enables stable depth measurement with a resolution of 0.01mm. ABSOLUTE Digital Caliper (Refer to page D-8 for ABSOLUTE function.) Digital […]

Standard gage for depth measurement. Optional longer extension bases are available. (Except for models with measuring ranges of 600 and 1000mm) SPECIFICATIONS Metric Order No. Range Vernier reading Accuracy Base (W x T) Remarks 527-201 0 – 150mm     0.05mm ±0.05mm   100 x 6.5mm — 527-202 0 – 200mm — 527-203 0 – […]

Coolant proof models achieve IP67 protection level. Enables stable depth measurement with a  resolution of 0.01mm. ABSOLUTE Digital Caliper (Refer to page D-8 for ABSOLUTE function.) Sliding operation of models with the measuring ranges 150mm (6″), 200mm (8″) and 300mm (12″) is smooth and comfortable. Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory) Optional […]

Measuring rod diameter: ø4mm Measuring rod lock is attached. *Measuring rod is attached on the rear side of the micrometer. Carbide-tipped measuring rod model is available. Ratchet stop provides constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Base 128-101   0 – 25mm   0.01mm 63.5 x 16mm 128-103*1 128-102 101.6 x 16mm 128-104*1 *1  with […]

This type uses interchangeable rods to enable wide-range measurement. Order Nos. 329-250-30, 329-251-30, 329-350-30, and 329-351-30 allow integration into statistical process control and measurement systems. Measuring rod diameter: ø4mm Measuring rod lock. Ratchet stop provides constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Base No. of rods Digimatic (LCD) 329-250-30 0 – 150mm 0.001mm 101.6 x 16mm 6 […]

Best-in-class accuracy ±(2.4+2.1L/600)μm Newly developed high accuracy and high resolution ABSOLUTE linear encoder for position detection. Once origin is set, origin setting is not required each time you turn the power ON (except in the case of a large environmental temperature change). GO/±NG judgment is performed by setting upper and lower tolerances. If a judgment […]

Excellent accuracy of (1.1+0.6L/600)μm with 0.1μm/0.4μm resolution/repeatability. High-accuracy Height Gage incorporating a wide range of measurement functions. To achieve best-in-class accuracy, a highaccuracy reflective-type linear encoder and high-accuracy guide are used. Measurement can be implemented by icon based commands that also support easy one key operation. Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed. The TFT LCD […]

Easy and error-free reading with both up and down digital counters as well as a dial. Can be zero-set at any arbitrary position. Provided with a large adjustment wheel for easy height adjustment. Clamp can be operated easily and securely. Fits comfortably in the hand and moves easily on the surface plate. Carbide tipped scriber (No. 07GZA000) is […]

Fits comfortably in the hand and moves easily on the surface The main scale slides and clamps within the column for quick and convenient zero-setting. Large locking knobs are used both for the slider and fine adjustment clamps to make clamping easy and secure. Operability of slider has been Improved. Large main- scale engraving for […]

ABS and INC measurement modes allow efficient operation. Rigid structure makes instrument suitable for use in severe work environments. The +/- measurement function widens the application range. Allows integration into statistical process control and measurement systems. Refer to page A-3. Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory) Battery life is 5,000 […]

Allows smooth elevation by the slider adjustment wheel, which is the same as the well-established double-column structure height gage. Large slider-clamp lever ensures positive and accurate clamping action. High durability and high accuracy are ensured by an improved column design (35x15mm). Character height of the LCD display is 10mm. Ergonomic and stylish base fits comfortably  […]

Easy-to-use standard type. Double-column structure ensures high measuring accuracy. Ergonomic base fits comfortably in the hand. Character height of the LCD display has been increased (10mm to 11mm) and a highcontrast LCD display unit adopted, so that readability is improved. Allows integration into statistical process control and measurement systems. Refer to page A-3. Battery: SR44 (1 […]

ABSOLUTE electromagnetic induction linear encoder system is introduced. Snap mechanism allows continuous and easy measurement without moving the slider by using the lever. The ABSOLUTE Digimatic snap caliper features a spring-loaded mechanism to allow quick and efficient GO/NO-GO inspection for mass production parts. Allows step measurement Displacement of snap part is 2 mm. Measuring force: 7N to […]

ABSOLUTE electromagnetic induction linear encoder system is introduced. Due to the low measuring force, these calipers are ideal for measuring elastic workpieces such as plastic parts and rubber parts that standard calipers cannot measure accurately. Allows fine feeding easily by using thumb roller. Displacement of main scale jaw is 0.3mm. Measuring force: 0.49N to 0.98N […]

Can measure width of grooves and lands inside bores and recesses. SPECIFICATIONS Metric Order No. Range* Accuracy Remarks 536-171 0 – 200mm (10.1 – 200mm) ±0.03mm — 536-172 0 – 200mm (2.1 – 200mm) ±0.03mm with fine adjustment * ( ): Dimension in inside measurement DIMENSIONS Range D F L N P S t W […]

The beam-mounted jaw is a round bar that facilitates measurements of tube wall thickness. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. […]

Can measure wall thickness inside bores and recesses. Digital models are an IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for modwith measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Digital model […]

Specially designed for inside measurements in hard-to-reach places. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Digital model […]

The thin blade-type jaws fit into very small grooves and make previously difficult outside measurements far easier to obtain. The outside measuring faces are carbide tipped. Allows step measurement. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration […]

• Narrow-tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain. • Allows step measurement. • Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) • SPC output models allow integration into statistical process […]

Specially designed to measure hole Centerto-Center and Edge-to-Center distances. Provided with jaws on the back of the slider, measurements can be read easily from above. A digital model is IP67 Absolute type. (Refer to page D-8 for Absolute function.) Direct reading of pitch measurements is available due to the offset value setting function. Allows integration into […]

Specially designed for hole Center-to-Center measurements on the same, or offset, planes. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Direct reading of pitch measurements is available due to the offset-value setting function. Allows integration into statistical process control […]

Long jaw Vernier Caliper for measuring hard-to-reach workpiece features. Inside and outside measurements can be read directly from the upper and lower vernier scales. SPECIFICATIONS Metric with inside measurement vernier scale Order No. Range* Accuracy Graduation Remarks 534-113 0 (10.1) – 300mm ±0.04mm   0.02mm   with fine adjustment 534-114 0 (20.1) – 500mm ±0.06mm 534-115 0 […]

The beam-mounted jaw can be adjusted to facilitate measurement of stepped sections and hard-to-get-at workpiece features. Digital models are IP67 Absolute type. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to […]

Long jaws for measuring hard-to-reach workpiece features. Inside and outside measurements can be read directly from the upper and lower vernier scales. SPECIFICATIONS Metric with inside measurement vernier scale Order No. Range* Accuracy Graduation Remarks 534-109 0 (10.1) – 300mm ±0.07mm 0.05mm without fine adjustment 534-110 0 (20.1) – 500mm ±0.13mm * ( ): Minimum dimension […]

Inside and outside measurements can be read directly from the upper and lower vernier scales. The jaws have radiused measuring faces for accurate inside diameter (ID) measurement. With fine adjustment (except for 160-130/131/132/133/134). SPECIFICATIONS Metric with inside measurement vernier scale Order No. Range* Accuracy Graduations Remarks 160-130 0 (20.1) – 450mm ±0.10mm     0.05mm   […]

IP66 Absolute Digital Caliper (Refer to page D-8 for a description of Absolute measurement.) The range of applications can be expanded by using interchangeable jaws (optional). Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. Provided with preset function for setting a desired starting point, which allows […]

IP66 Absolute Digital Caliper (Refer to page D-8 for a description of Absolute measurement.) Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics) in the beam and jaws. Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3. SPECIFICATIONS Metric Order No. Range* Accuracy […]

IP66 Absolute Digital Caliper (Refer to page D-8 for Absolute function.) Lightweight Digimatic Calipers that employ CFRP (Carbon Fiber Reinforced Plastics) in the beam and jaws. Allows integration into statistical process control and measurement systems for models with measurement data output connector.Refer to page A-3. SPECIFICATIONS Metric Order No. Range* Accuracy 552-302-10 0 – 450mm […]

Newly designed dial movement for ultra smooth sliding and high shock protection. Easy-to-read yellow dial. Large finger-rest aids ease-of-use. Jaw tips are relieved for easy measurement of thin parts. Allows step measurement. SPECIFICATIONS Metric Order No. Range Accuracy Graduation Remarks 505-730   0 – 150mm   ±0.03mm   0.02mm, 2mm/rev   505-734 Carbide-tipped jaws for outside […]

Offers a resolution of 0.01mm with corresponding accuracy. Incorporates an Absolute measurement system. No need to reset the origin after switching on. (Refer to page D-8 for a description of Absolute measurement.) Allows integration into statistical process control and measurement systems for models with measurement data output connector.Refer to page A-3. ID measurement value: displayed value […]

Offers a resolution of 0.01mm with corresponding accuracy. Incorporates an Absolute measurement system. No need to reset the origin after switching (Refer to page D-8 for a description of Absolute measurement.) Code 550-301-10, 550-331-10, 550-311-10 and 550-341-10: IP67 (These models are not a waterproof type. Therefore a rustproofing shall be applied after use.) Allows integration […]

Fine-adjustment aids slider positioning. Allows step measurement. SPECIFICATIONS Metric Order No. Range Depth bar Remarks 532-101 0 – 130mm   Blade   with fine adjustment 532-102 0 – 180mm 532-103 0 – 280mm Metric/Inch with metric/inch double scale Order No. Range Depth bar Inch graduation Remarks 532-119 0 – 130mm   Blade   .001″   […]

Plain and basic design. Stepped graduation face prevents dust ingress between the main scale and slider. The small vernier face angle (14°) provides easy reading. Can measure outside and inside dimensions, depth, and steps. Carbide-tipped jaw calipers are optimal for rough finished parts, castings, grinding stones, etc. Decimal and fractional graduated scales (metric/inch and inch models only). […]

Mitutoyo’s Absolute Solar Digimatic Caliper retains its origin point indefinitely. At 60 Lux and above the ABSOLUTE solar caliper is ready to start measurement. No more repeated zero setting caused by a shortage of light. An ABSOLUTE scale is incorporated so that zero setting is not required at each power ON. No danger of overspeed errors. Slider operation […]

Long Digital caliper incorporating an ABSOLUTE scale and available with a measuring range from 450mm to 1000mm. Allows step measurement Allows integration into statistical process  control and measurement systems for models with measurement data output connector. Refer to page A-3. For the details of the Absolute scale and its function, refer to page D-8. SPECIFICATIONS Metric Order No. […]

ABSOLUTE electromagnetic induction linear encoder system is introduced (except for 0 – 300mm/0 – 12″ models). New ergonomic design with finger rest. The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button will also allow return to the absolute (ABS) mode and display of the true […]

ABS Coolant Proof Caliper with Dust/Water Protection conforming to IP67 Level. Can be used in workshop conditions exposed to coolant, water, dust or oil. 100% air-leak test ensures every caliper conforms to IP67. Font height is 9mm (increased by 22%) and visibility is improved (except for 0 – 300mm/0 – 12″ models). Battery cap does not require a screw […]

Top-of-the-line digital caliper. Solar type caliper with no battery and IP67 protection assures waterproof reliability. With no annoying origin restoration necessary, a measurement can be started any time and there is no restriction on operating speed. The impact resistance of the display unit has been increased for improved usability in workshop conditions. Waterproof function makes this Super Caliper suitable for […]

These ABSOLUTE Digimatic bore gages are exclusively designed for inside diameter measurement. Up to four extension rods (250mm or 500mm) can be used for measuring at the bottom of a hole 2m deep. ABS (ABSOLUTE) type bore gages are not subject to overspeed error. The display and grip can be rotated up to 320 degrees and […]

Capable of ID (inside diameter) measurement close to the bottom of a hole. Carbide contact point ensuring high durability and wear resistance. Grip is large and hollow to reduce effect of body heat on high-accuracy measurements. Alternative indicators may be used in place of those recommended*. * Some indicators and protection covers cannot be used with these […]

Micrometer head is attached to the anvil for accurate dimensional setting. Longer plunger stroke with no affect on accuracy. Carbide is used for the contact point ensuring high durability and wear resistance. This model reduces the influence of heat from  the operator’s hand by 50% by increasing the grip size and making the grip hollow-structured, thereby […]

Compact and lightweight due to the short length below the grip. Longer plunger stroke with no affect on accuracy. Carbide contact point ensuring high durability and wear resistance. This model reduces the influence of heat from the operator’s hand by 50% by increasing the grip size and making the grip hollow-structured, thereby retaining high-accuracy measurement. Alternative indicators […]

Longer plunger stroke with no affect on accuracy. Carbide is used for the contact point ensuring high durability and wear resistance. This model reduces the  influence  of heat  from the operator’s hand by 50% by increasing the grip size and making the grip hollow-structured, thereby retaining high-accuracy measurement. Alternative indicators may be used in place […]

Alternative indicators may be used in place of those recommended*. Some indicators and protection covers cannot be used with these bore gages. Contact a Mitutoyo sales office if considering the use of dial or digimatic  indicators other than the recommended models. Setting Rings are available to aid in accurately setting a gage before making a measurement. (For details, […]

Wide range of inside diameter measurements possible by combining one or more interchangeable rods. Each interchangeable rod is marked with its measuring range. For models supplied with more than one interchangeable rod, the full measuring range is achieved by combining spacing collars with the rods. Both micrometer head and rods are satinchrome finished throughout. The sleeve is rotated […]

Carbide measuring faces. Equipped with a constant measuring-force device. Setting ring (nominal size below 300mm), CERA Inside Micro Checker (more than 50mm), and Gauge Block accessory set are provided as a reference gage for datum adjustment (refer to page C-47, C-26, and E-17 – E20 for details). SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Mass Digimatic (LCD) […]

Wide range of inside diameter measurements possible by combining extension pipes and anvils with the micrometer head. Carbide measuring faces are available. The sleeve is rotated to adjust the index line position when setting to a length An inside length standard is required for accurately setting the micrometer. Order No. 339-101/301/302/102/303/304 features: IP65 (water-proof) protection […]

Wide range of inside measurements possible by combining extension rods and anvils with the micrometer head. Two types of measuring faces are available; with or without carbide tip. (No. 337- 101/301/302/102/303/304 only available with carbide ) The sleeve is rotated to adjust the index line position when setting to a length standard. An inside length […]

Standard single rod type inside Carbide measuring The sleeve is rotated to adjust the index line position when setting to a length Setting ring (nominal size below 300mm), CERA Inside Micro Checker, and Gauge Block accessory set are provided as a reference gage for datum adjustment (refer to page C-47, C-26, and E-17 – E20 […]

A snap-type digital display, inside-diameter measuring instrument allows quick and easy measurement with lever operation. Titanium-coated measuring pins provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole. Three-Point contact measuring head enables highly repeatable measurement data to be obtained. The ABSOLUTE linear encoder eliminates overspeed errors. GO/NO-GO […]

Hardened tool-steel anvils (instead of titanium-coated carbide) for a more economically priced tool. Same accuracy as the titanium-coated Holtest models. For details of setting rings, refer to page C-47 Constant-force device allows repeatable measurement. Can measure deep holes using an Extension Rod (optional). Range (mm) L3 (mm) L5 (mm) 12 – 20 2.6 or below […]

Titanium-coated measuring pins on the three- point type (over 6mm range models) provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind Three-point bore micrometer with measuring range 6mm or longer allows stable measurement through automatic Can measure deep holes using an Extension rod (optional) which […]

v Three-point internal micrometer with large LCD readout. (Character height 7.4mm) Titanium-coated measuring pins provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind One SR44 battery is required and battery life is 1.2 years under normal use. ABSolute and INCremental measurement modes allow highly efficient […]

Measuring range of 13mm. SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation features 148-104           0 – 13mm           ±2µm           9.5mm Plain   Flat       Standard 148-103 W/ clamp nut 148-121 Plain* 148-120 W/ clamp nut* […]

Short body design maintains measuring range for limited space applications. Available in three thimble diameters to provide ease-of-reading options. DIMENSIONS Technical Data Graduation: 0.01mm or .001” Spindle pitch: 0.5mm or .025”

DIMENSIONS

DIMENSIONS

Miniature micrometer heads for ease of incorporating into machines.   SPECIFICATIONS Metric Order No. Range Accuracy Stem dia. Stem Spindle end Graduation 148-215 0 – 5mm ±5µm 3.5mm Plain W/ clamp nut Spherical (SR1.5) Standard 148-216 148-201 0 – 6.5mm 6mm Plain W/ clamp nut Flat 148-203 148-205 Plain W/ clamp nut Spherical (SR3) 148-207 […]

Equipped with digital display and output. Series 350 IP65 models: the Digimatic output port enables inclusion in a statistical process control or networked measurement system. (Refer to page A-3 for details). SPECIFICATIONS Metric Order No. Range Resolution Accuracy** Stem Stem dia Spindle end Graduation features 164-163 0 – 50mm 0.001mm ±3µm ±2µm Plain 18mm Flat (carbide […]

Designed to allow benchtop use of hand micrometers or other gages which have frames suitable for gripping by the clamp. SPECIFICATIONS Order No. Micrometer ranges Remarks 156-101-10 Up to 100mm (4″)* Adjustable angle type 156-105-10 0-25mm (0-1″), 25-50mm (1″-2″) Fixed angle type 156-102 125-300mm (5″-12″) Vertical type 156-103 300-1000mm (12″-40″) Vertical type * Items that cannot […]

Designed to inspect parallelism and flatness of measuring faces of micrometers. For details, refer to “Quick Guide to Precision Measuring Instruments”. Each set consists of 4 sizes to aid in testing parallelism at various angular positions of the micrometer spindle.   SPECIFICATIONS Metric Order No. Range of micrometer to be checked Sizes of parallels included in set Diameter […]

Used for accurately setting screw thread micrometers at the start or end of the measuring range. Metric Order No. Length Accuracy Metric (unified) 8 = 60° 167-261 25mm ±4µm 167-262 50mm ±5µm 167-263 75mm ±6µm 167-264 100mm ±7µm 167-265 125mm ±8µm 167-266 150mm ±9µm 167-267 175mm ±10µm 167-268 200mm ±11µm 167-269 225mm ±12µm 167-270 250mm […]

Used for adjusting the reference point of the outside micrometer. SPECIFICATIONS and DIMENSIONS Metric Order No. Length  (L) Tolerance   Diameter  (D) 167-101 25mm ±1.5µm 18   6.35mm 167-102 50mm ±2.0µm 40 167-103 75mm ±2.5µm Inch Order No. Length  (L) Tolerance   Diameter  (D) 167-141 1″ ±.00005″ 18   .25″ 167-142 2″ ±.0001″ 40 167-143 […]

A spring-loaded plunger expands within a bore (or groove) and is locked in place, allowing measurement of diameter (or width) with an outside micrometer after extraction. SPECIFICATIONS Metric Order No. Range 6-gage Set 155-905 8 – 150mm Gages included 155-127 8 – 12.7mm 155-128 12.7 – 19mm 155-129 19 – 32mm 155-130 32 – 54mm […]

Extra long for gaging deep and shallow holes, slots, and similar workpiece features. Two sprung leaves are fully expanded inside a feature so that its size can be measured with an outside micrometer after extraction. SPECIFICATIONS Metric Order No. Range 4-gage Set 154-902   3 – 13mm Gages included   154-101 3 – 5mm 154-102 5 […]

Lightweight and palm-sized. Highly suitable for quick dimensional inspection of small, thin and delicate objects. Functions: origin setting and zero-setting. Application examples Measurement of small objects: pearls, jewels, shims for engine tappets  and screws. Measurement of thin objects: printing paper, polyethylene bags,  sheet materials, foods including noodles, lenses for glasses, media substrates, foils, thin plates and medical products including filter […]

Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Two-directional ratchet stop. For ID and OD (except for 0 – 25mm) measurement, a master gage is required for adjusting the reference point. SPECIFICATIONS Metric Order No. Range Outside Range Inside Graduation Accuracy Flange Rotating spindle 146-121 0 – 25mm […]

Suited to the measurement of massproduced parts. Various types of indicator can be selected according to the measurement application. Measuring faces: Carbide SPECIFICATIONS Metric Order No. Range Anvil movement Measuring force* Mass 523-141 0 – 25mm   2mm   5 – 10N 710g 523-142 25 – 50mm 810g 523-143 50 – 75mm 920g 523-144 75 – […]

Suited to the measurement of massproduced parts. Designed for measurement using a stand: realizes stable measurement. Greatly improved accuracy: indication error and graduation of 1μm. Water-proof to protection level IP54. Hard-coated crystal: enhanced oil and scratch resistance. Indicator scale is large and easy-to-read. Easily settable adjustable limit markers for GO/±NG testing. Equipped with an elevating workpiece […]

Suited to the measurement of low-volume manufactured parts. Easy to use when operating one-handed due to retractable anvil. In the 25mm measuring range, the model lineup offers a choice of left or right positioning of the anvil-retraction button. Greatly improved accuracy: indication error and graduation of 1μm. Water-proof to protection level IP54. Hard-coated crystal: enhanced oil and […]

Dual-spindle design enables use as a GO/±NG gage by setting upper and lower limits. Measuring faces: Carbide SPECIFICATIONS Metric Order No. Range Graduation Accuracy Flatness Parallelism 113-102 0 – 25mm 0.01mm ±3µm 0.6µm 3µm 113-103 25 – 50mm Technical Data Standard accessories: Reference bar, 1 pc (except for measuring range 0-25mm (0-1″) models) Spanner (200877), 1 […]

Measures tubing thickness, shoulder edge distance, rivet head height, etc., with interchangeable anvils (flat anvil, rod anvil, V-anvil). IP65 water/dust protection (series 317). Equipped with Ratchet Stop for constant  measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 317-251-30 0 – 25mm 0.001mm ±4µm 317-252-30 25 – 50mm * Excluding quantizing error Inch/Metric Order […]

Measures the height of crimp contacts. Equipped with Ratchet Stop for constant measuring force. IP65 water/dust protection (digital model). Model 342-451 is the Quickmike type, which provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 342-271-30 0 […]

Designed for measuring wire thickness. Measurable wire dia.: 10mm or less Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Accuracy 147-401 0 – 10mm 0.01mm ±3µm Inch Order No. Range Graduation Accuracy 147-402 0 – .4″ .0001″ ±.00015″ DIMENSIONS Technical Data Flatness: 0.6μm/.000024” Parallelism: 1.3μm/.00005” Standard […]

Measures hub thickness and shoulders inside a bore. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Accuracy 147-301 0 – 25mm   0.01mm   ±2µm 147-302 25 – 50mm 147-303 50 – 75mm 147-304 75 – 100mm ±3µm Inch Order No. Range Graduation Accuracy 147-351 0 – […]

 Measures the width, height, and depth of can seams. SPECIFICATIONS Metric Order No. Range Graduation Accuracy Remarks 147-103   0 – 13mm   0.01mm   ±3µm for steel cans 147-105 for aluminum cans 147-202 for spray cans Inch Order No. Range Graduation Accuracy Remarks 147-104   0 – .5″   .001″   ±.00015″ for steel […]

The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features. Carbide-tipped measuring faces are also available Non-rotating spindle type. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remark Digimatic  (LCD) 422-230-30 0 – 25mm       0.001mm   ±3µm   […]

Measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes. Measures pitch diameter: refer to “Quick Guide to Precision Measuring Instruments” on page B-73. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric For 3-flute cutting tools Order No. Range Resolution Accuracy* […]

Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features. The measuring points (carbide tipped) have approximately 0.3mm radius. series 342: IP65 Digimatic micrometers Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Point Digimatic (LCD) (With carbide tip) 342-251-30 0 […]

The anvil and spindle are of small diameter for measuring splined shafts, slots, and keyways. IP65 water/dust protection (series 331). Measuring faces: Carbide. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remarks Digimatic  (LCD) 331-251-30 0 – 25mm       0.001mm   ±2µm   Type A 331-252-30 25 […]

Spindle face: Carbide series 395: IP65 spherical and cylindrical anvil type digital micrometers Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Remarks Digimatic  (LCD) 395-261-30   0 – 25mm   0.001mm   ±3µm Type A 395-262-30 Type B 395-263-30 Type C 395-264-30 Type D * Excluding quantizing error […]

Measuring faces: Carbide (115-201: only the spindle is carbide tipped.) Series 395: IP65 spherical anvil and spindle type digital micrometer. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* 0D Digimatic  (LCD) 395-271-30 0 – 25mm   0.001mm   ±2µm 015 395-272-30 25 – 50mm 395-273-30 50 – 75mm 019 […]

Measuring faces: Carbide (115-101: only the spindle is carbide tipped.) series 395: IP65 digital spherical-flat anvil  type micrometer. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* 0D Digimatic  (LCD) 395-251-30 0 – 25mm   0.001mm   ±2µm 015 395-252-30 25 – 50mm 395-253-30 50 – 75mm 019 395-254-30 75 […]

Large diameter dial model enables easy and quick measurement of sheet metal thickness. Adjustable anvil. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Order No. Range Graduation Accuracy Throat depth 119-202 0 – 25mm 0.01mm ±4µm 50mm DIMENSIONS Technical Data Standard accessories: Spanner (200168), 1 pc

Measures thickness of sheet metal. IP65 water/dust protection (series 389). Measuring faces: Carbide Profile of measuring faces: Flat-Flat, Spherical-Flat and Spherical-Spherical. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Throat depth Measuring surfaces Digimatic  (LCD) 389-251-30   0 – 25mm       0.001mm   ±4µm   150mm […]

Measures “root tangent length” of spur gears and helical gears. Determination of the root tangent length: refer to “Quick Guide to Precision Measuring Instruments”. Non-rotating spindle type. Measurable range of gear pitch: 0.5 to 6 module (series 227: 0.4 to 3 module). Equipped with Ratchet Stop for constant measuring force. Supplied with a setting standard […]

Measures over-pin diameter of gears using precision steel (or carbide) ball anvils / spindle tips. Series 324: IP65 Digimatic gear tooth micrometers. Determination of the over-pin diameter: refer to “Quick Guide to Precision Measuring Instruments”. Interchangeable ball anvils / spindle tips for various gear modules (0.5-5.25) are optional. Equipped with Ratchet Stop for constant measuring […]

Measures “root tangent length” of spur gears and helical gears. Determination of the root tangent length: refer to “Quick Guide to Precision Measuring Instruments”. Equipped with Ratchet Stop for constant measuring force. Supplied with a setting standard (except for 0-25mm/0-1” measuring range).   SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Anvil dia. Measurable module Digimatic […]

• For paper thickness measurement. • Non-rotating spindle. • Equipped with Ratchet Stop for constant measuring force. (8.02±0.8N) SPECIFICATIONS Order No. Range Graduation Accuracy Flatness Parallelism 169-101 0 – 25mm 0.01mm ±4µm 1µm 3µm   Order No. Range Graduation Accuracy Flatness Parallelism 169-103 0 – 1″ .001″ ±.0002″ .00004″ .00015″ DIMENSIONS Anvil dimensions Technical Data Standard […]

• Enables measurement of the pitch diameter of screw threads with a standard micrometer. • Determination of the pitch diameter: refer to “Quick Guide to Precision Measuring Instruments”. SPECIFICATIONS 3-Wire Units set Order No. Set Wire dia. (mm) Support spindle dia. (mm) 313-101 18 0.170 – 3.200 06.35 Order No. (One pair) (Support spindle dia.) 06.35mm […]

Non-rotating spindle type which accepts seven forms of optional interchangeable anvil / spindle tip (flat, spline, spherical, point, knife-edge, disk, and blade) for a wide range of applications. Equipped with Ratchet Stop for constant measuring force. Optional anvils / spindle tips for screw thread measurement (matching V and cone) are also available. SPECIFICATIONS Metric Order No. Range […]

Anvils and spindle tips are interchangeable in matching pairs to enable measurement of Metric/Unified or Whitworth threads. Direct reading of screw pitch diameter (no need for calculation) Equipped with Ratchet Stop for constant measuring force. Interchangeable anvils / spindle tips are optional. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 326-251-30 0 – 25mm   […]

Fixed anvil type to suit 60º threads Directly indicates screw pitch diameter (no need for calculation) Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Thread to be measured (Metric/nnified) Range Graduation 125-101 0.4 – 0.5mm/64  – 48TPI     0 – 25mm           0.01mm 125-102 0.6 – […]

Effective for measuring workpiece features where access is difficult. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Resolution Accuracy* Digimatic  (LCD) 343-250-30 0 – 25mm   0.001mm ±5µm 343-251-30 25 – 50mm ±6µm 343-252-30 50 – 75mm ±7µm 343-253-30 75 – 100mm ±8µm * Excluding quantizing error […]

Wide measuring range with anvil extension collars 50mm/2” spindle stroke Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No. Range Graduation Extension Collars Setting Standard (pcs) (every 100mm) 105-408 1000 – 1100mm           0.01mm           1 pc (50mm)       […]

Adjustable measuring range with extension collars. 50mm/2” spindle stroke Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Order No. Range Graduation Extension Collars Setting Standard 105-103 500 – 600mm     0.01mm     1 pc (50mm)     2 pcs. 105-104 600 – 700mm 105-105 700 – 800mm 105-106 800 – 900mm […]

Wide measuring range with interchangeable anvils. Measuring face of the spindle is carbide tipped (standard model). IP 65 water/dust protection (series 340). * Models with a measuring range up to 300mm. Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric Order No.   Range   Resolution   Interchangeable anvils Setting Standard   Micrometer head stroke Qty […]

Designed to mount a dial indicator for direct GO/±NG judgment on mass-produced parts. Anvil retracting trigger for quick measurement. Various kinds of indicators*1 are selectable depending on the measurement type (accuracy required, measuring range, etc.). Measuring faces: Carbide Anvil stroke: 3mm SPECIFICATIONS Metric Order No. Range Accuracy 107-201 0 – 25mm   ±2µm 107-202 25 – 50mm 107-203 […]

Non-rotating spindle. Equipped with Ratchet Stop for constant measuring force. Metric Order No. Range Resolution Accuracy* Flatness Parallelism 406-250-30 0 – 25mm     0.001mm   ±3µm     0.3µm   3µm 406-251-30 25 – 50mm 406-252-30 50 – 75mm 406-253-30 75 – 100mm ±4µm 4µm   * Excluding quantizing error Inch/Metric Order No. Range […]

Mechanical digit counter with 0.01mm or .001” resolution for quick and error-free reading. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. SPECIFICATIONS Metric With ratchet stop Order No. Range Graduation Accuracy 193-101 0 – 25mm 0.01mm     ±2µm 193-111 0.001mm 193-102   25 – 50mm 0.01mm 193-112 0.001mm 193-103   50 – […]

Satin-chrome-finished frame, tapered (on the anvil side) for hard-to-reach places. Supplied with a setting standard (except for 0-1” models). Measuring faces: Carbide SPECIFICATIONS Inch With ratchet stop Order No. Range Graduation Accuracy 101-113 0 – 1″     .0001″   ±.0001″ 101-114 1″ – 2″ 101-119 2″ – 3″ 101-120 3″ – 4″ ±.00015″ Inch With friction […]

Baked-enamel-finished frame. Measuring faces: Carbide Equipped with Ratchet Stop for constant measuring force. Metric  With ratchet stop Order No. Range Graduation Accuracy 103-137 0 – 25mm 0.01mm     ±2µm 103-129 0.001mm 103-138 25 – 50mm 0.01mm 103-130 0.001mm 103-139-10 50 – 75mm                         […]

More accurate in one-handed operation: inexperienced operators measure significantly more accurately with the new micrometer. Ratchet function works both from the thimble and the speeder. Rotating the thimble/speeder when the workpiece is between the anvil and spindle causes the ratchet mechanism to operate and apply a constant measuring force to the workpiece. Clearly audible ratchet operation […]

Heat-insulated frame. Cut-away frame (behind anvil) for measuring in hard-to-reach places. A ratchet stop or a friction thimble for a constant measuring force. Measuring faces: Carbide       SPECIFICATIONS Metric Order No. Range Graduation Accuracy Flatness Parallelism Constant-force device 102-301   0 – 25mm 0.01mm ±2µm 0.6µm 2µm Ratchet stop 102-311 0.001mm ±1µm 0.3µm […]

Digimatic micrometer dedicated to applications requiring a constant/low measuring force such as measuring wire, paper, and plastic/rubber parts. Ratchet mechanism in the thimble applies constant force to workpiece. Compact and easy to handle. Measuring force is adjustable (in steps) to suit various kinds of workpiece. High-accuracy measurement can be performed even by unskilled operators due to […]

The Quickmike provides a speedy spindle feed of 10mm per thimble rotation, which enables widely differently sized features to be measured quickly. Set the origin only once. The absolute linear scale maintains the origin throughout the life of battery, meaning no more zero setting (presetting) or overspeed error. The Quickmike Measuring faces: Carbide Supplied with […]

Models equipped with a Digimatic output port can form part of a statistical process control or networked measurement system. (Refer to page A-3 for details.) Constant-force device: ratchet stop Interface Input Tools are available that enable the conversion of measurement data to keyboard signals that are then directly input to cells in off-the-shelf spreadsheet software such as […]

World’s highest performing micrometer overall. Extended battery life of approximately 2.4 years. Ergonomic anti-slip frame cover and front panel for more comfortable hand-held measurements. Ratchet thimble provides better operability for one-handed operation. Oil-resistant material used for all plastic parts. Models equipped with a Digimatic output port can form part of a statistical process control or […]

Advanced pioneering technology has created the next generation of micrometer, the most revolutionary advance in micrometer technology since James Watt invented the instrument. Faster measurement is achieved by using a coarser thread which feeds the spindle by 2mm per revolution of the thimble. This increase in thread lead has been made possible thanks to new high precision threadcutting […]

Enabling 0.1μm resolution measurement, this micrometer is ideal for customers who need to make highly accurate measurements with a hand-held tool. The High-Accuracy Digimatic Micrometer utilizes Mitutoyo’s innovative 0.1μm resolution ABS (absolute) rotary sensor*1 and high-accuracy screw machining technology to reduce the instrumental error to ±0.5μm, delivering higher accuracy without sacrificing operability. *1. Patent pending […]

Double-column structure ensures high measuring accuracy. Ergonomic base fits comfortably in the hand. Bidirectional touch-trigger probe is available as an optional accessory. Character height of the LCD display has been increased (10mm to 11mm) and a high- contrast LCD display unit adopted, so that the readability is improved. Inclined handle improves slider ergonomics. Allows integration into statistical […]

MULTIMAR 844 TA SHOULDER ANVILS With cylindrical mounting shaft to attach into the mounting attachments 844 Tma / 844 Tmi Flat; for external diameters Made of hardened steel Technical data Order no. Mounting shaft diameter in mm 4500050 5 mm Applications For measuring narrow collars such as centering shoulders and other similar measuring tasks MULTIMAR […]

MULTIMAR 844 TMI MOUNTING ATTACHEMENT For outside (844 Tma) and inside diameters (844 Tmi) Stainless steel Lateral mm scale for easy positioning and adjustment of measuring limit stops Reversible measuring arms on measuring arm holders to increase the measuring range With ø 5 mm mounting bore for inserting interchangeable 844 Ta, 844 Ti, 844 Tb, […]

With cylindrical holding shaft for fixing in 844 Tma / 844 Tmi mounting attachments Made of hardened steel The collar Ø D is ground precisely to dimension, the Ø D is set as the PRESET value for absolute measurements Technical data Order no. Dimensions d in mm Dimension D 4119010 1.5 mm 20 mm 4119011 […]

For easy adaptation to individual measuring tasks, optional accessories include: – Interchangeable measuring arms – Contact blocks – Stop elements The movable measuring arm carrier is mounted on a high precision ball bearing guide for reduced play and friction – Results in high measuring sensitivity, accuracy and free movement Stable support elements for repeatable measurements […]

For easy adaptation to individual measuring tasks, optional accessories include: – Interchangeable measuring arms – Contact blocks – Stop elements The digital display is always in the operator’s line of vision due to the patented mounting fixture of the measuring elements provided on the upper and lower longitudinal face of the arm holders Application range […]

Maximum wear resistance due to carbide ball anvils Constant measuring force due to built-in spring, eliminating user influence Anvils, measuring heads, holder, spacer (intermediate piece) and depth extensions form a very comprehensive modular system which can rapidly be converted to measure further gear sizes When ordering please state the required ball diameter Technical data Order […]

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball Transmission lever system transfers movement of movable anvil to indicating instrument The broad centering bridge ensures automatic centering in the bore Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel Highly resistant […]

Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a carbide ball Transmission lever system transfers movement of movable anvil to indicating instrument The broad centering bridge ensures automatic centering in the bore Resistant to temperature bacause the shank and transfer rod are made of heat resistant Invar steel Highly resistant […]

Maximum wear resistance due to hard chrome plating Constant measuring force as a result of built-in spring, eliminating user influence Highly versatile – Each gage covers a broad range – Quickly and easily adjustable to any size and type of measuring application (within the limits) Extensive modular system is composed of measuring probe, holder, depth extensions, […]

MICROMAR 44 AK MEASURING HEAD Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure the bottom of a bore From 40 mm all measuring heads are made from aluminium to reduce […]

MICROMAR 844 A SELF-CENTERING INSIDE MEASURING PISTOL Threaded connection for changing the measuring head Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure the bottom of a bore From 40 mm […]

MICROMAR 44 EWR DIGITAL SELF-CENTERING INSIDE MICROMETER Threaded connection for changing the measuring head Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils can be used to measure the bottom of a bore From 40 mm […]

MICROMAR 44 AS SELF-CENTERING INSIDE MICROMETER SET Operating and display units with satin chrome finish Stainless spindle is hardened throughout and ground Rapid drive with integrated ratchet Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120° Anvils from 12 mm are carbide tipped From 12 mm the anvils […]

MARAMETER 49P-2M GAGE FOR EXTERNAL MEASUREMENT Generous clearance on jaws reaches over non-measured part protrusions for easy access to areas where thickness must meet critical dimensional specs Retraction lever is conveniently located for one hand operation 0.02 mm or 0.1 mm / .01“, .001“, or 1/64“ grads. available Continuous reading dials with revolution counters normally […]

High contrast analog and digital LCD Tolerance displayed with 2 LEDs             Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Length of fixed measuring contact […]

Contact points made of carbide Absolute measuring instrument Easy-to-read tolerance markers Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Groove depth Groove width Length of fixed measuring contact 4495580 838 […]

High contrast analog and digital LCD. Tolerance displayed with 2 LEDs               Technical data Order no. Product type Measuring range mm Graduation value mm Repeatability mm Error limit (mm) Measuring force (N) Measuring depth mm Measuring contact ball diameter mm Length of moving measuring contact Groove depth Groove width […]

MARAMETER 57B-13M PORTABLE THICKNESS GAGES Using the basic design of the Model 57B-13 (Model 57B-13M — Metric) gage, the lower contact is PT-103, 1.10 mm / .043” diameter rod, mounted horizontally Upper contact is a flat chisel contact , in line with the rod By slipping tubular parts onto the lower contact, the gage can […]

MARAMETER 57B-15M PORTABLE THICKNESS GAGES Solid casting with ribbed frame provides strength and rigidity for accurate measurements 0.003 mm / .0001“ parallelism with tables up to 19 mm / .75“ diameter 283 g / 10 oz. dead weight load for constant gaging pressure 10 mm / .407“ diameter flat upper 54.0 mm / 2.125“ lower […]

MARAMETER PORTABLE THICKNESS GAGES Solid casting with ribbed frame provides strength and rigidity for accurate measurements Furnished with a lift lever so work can be easily placed between the contacts Large 54 mm/ 2.125“ diameter lower anvil provides convenient stage for small parts or flat materials 4.75 mm/ .187“ diameter radiused upper contact normally provided […]

MARAMETER 26P-7M PORTABLE THICKNESS GAGES Push down movement Molded body fits shape of hand Built-in indicator Gage is normally open for easy part entry Push down button to close the contacts Rugged and compact for portable use 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range mm Throat […]

Indicator built into gage frame for maximum ruggedness Lift lever for one hand operation Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range inches Graduation value inch Probe_path_inch Size of measuring […]

Indicator built into gage frame for maximum ruggedness Lift lever for one hand operation Continuous reading dials with revolution counter for absolute measurement of thin materials, plastic films and small parts 6.3 mm / .25“ diameter, flat steel contacts Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth mm Probe_path_inch […]

Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth mm Resolution (mm) Resolution (in) Resolution mm/inch Graduation value mm Measuring surface diameter Measuring face Measurement surface radius 4495140 838 […]

Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Convenient heat insulated handle, open at one end Versions with a throat depth of 200 mm have a removable stand Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth […]

Rugged, sturdy frame made from hard aluminum Built-in digital or dial indicator With a lifting lever for movable upper measuring spindle Convenient heat insulated handle, open at one end Versions with a throat depth of 200 mm have a removable stand Technical data Order no. Product type Measuring range inches Measuring range mm Throat depth […]

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Anvil spindle adjustable with thumbscrew via worm and rack, for mounting interchangeable support yokes Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Anvil spindle can easily be […]

Rugged, forged steel frame with heat insulators Measuring spindle is mounted in long guideway with lever controlled retraction Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Adjustable center stop for automatic alignment Anvil spindle can easily be fine adjusted Constant measuring force as a result […]

Rugged steel frame can be inclined up to 45° from the sturdy base Measuring spindle and anvil are made of hardened stainless steel with mounting bore for insertion of interchangeable anvils Height adjustable stop Anvil spindle can easily be fine adjusted Constant measuring force as a result of built-in spring, eliminating user influence Technical data […]
